Bosch DWA64BC50B Hood

Bosch DWA64BC50B Chimney Hood
Series 2, Wall-mounted cooker hood,
60 cm, clear glass
DWA64BC50B
Optional accessories
DWZ0DX0A0 Standard odor filter (replacement), DWZ0DX0U0
Standard recirculation kit, DWZ0XX0J0 Long Life recirculation kit,
DHZ1225 Chimney extension 1000 mm, DHZ1235 Chimney extension
1500 mm, DHZ6550 Brushed steel back panel, DHZ6551 Brushed
steel back panel, DWZ1DX1B4 Clean Air Standard odor filter (repl.),
DWZ1DX1I4 Clean Air Standard recirculation kit, DWZ1DX1I6 Clean
Air Plus recirculation kit, DZZ1XX1B6 Clean Air Plus odor filter
(replacement), DWZ1FX5C6 Clean Air Plus recirc. kit external,
DWZ1FX5D1 Long Life recirculation kit external, DZZ0XX0P0 Long
Life odor filter (replacement)
Hood with glass design: performance
combined with curved glass design to
match your kitchen.
• Silent: maximum extractor performance with minimal noise.
• LED Illumination: The energy-saving lighting provides bright and
clear lighting for the hob area.
• An impressive extraction rate of m3/h ensures this hood will have
your kitchen odour free in no time.
• 3-speed power Level options to suit your cooking style and
recipes.
• Dishwasher safe aluminum mesh filters
Technical Data
Typology: .......................................................................Wall-mounted
Length of electrical supply cord: ..........................................130.0 cm
Height of the chimney: .................................... 576-897/576-1007 mm
Height of the appliance: ...........................................................50 mm

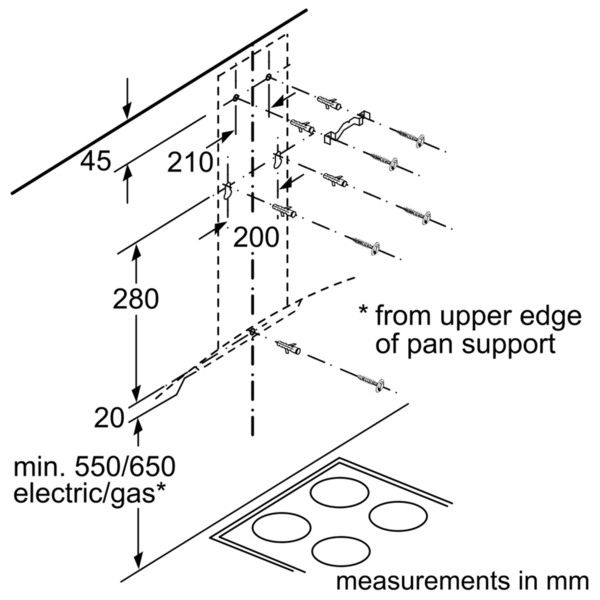

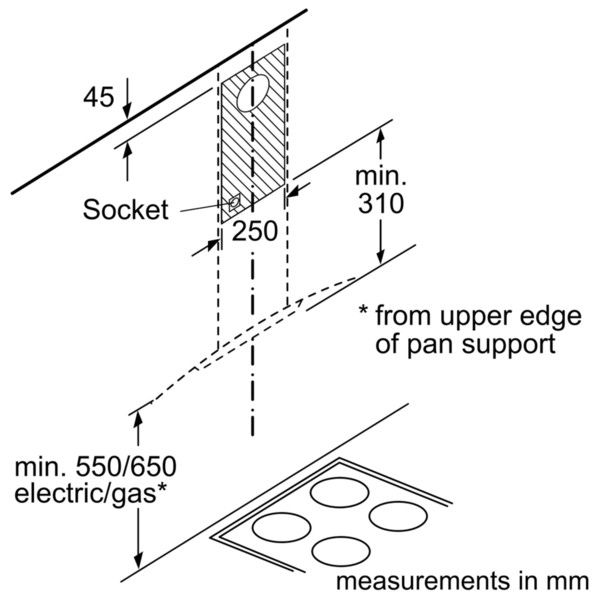

Minimum distance above an electric hob: .............................. 550 mm
Minimum distance above a gas hob: .......................................650 mm
Net weight: ..............................................................................12.6 kg
Type of control: .................................................................mechanical
Number of speed settings: ................................................................3
Maximum output air extraction: ........................................... 365 m³/h
Maximum output recirculating air: ........................................240 m³/h
Maximum Air flow: ................................................................365 m³/h
Number of lights (Stck): ................................................................... 2
Noise level: ..............................................................64 dB(A) re 1 pW
Diameter of air outlet: .................................................. 120 / 150 mm
Grease filter material: .........................................Washable aluminium
EAN code: ..................................................................4242005050901
Connection rating: .................................................................... 100 W
Fuse protection: ...........................................................................10 A
Voltage: ............................................................................... 220-240 V
Frequency: ........................................................................... 50; 60 Hz
Plug type: ...............................................................................GB plug
Installation type: ........................................................... Wall-mounted
1 /
Series 2, Wall-mounted cooker hood,
60 cm, clear glass
DWA64BC50B
Hood with glass design: performance
combined with curved glass design to
match your kitchen.
Key performance features:
- Energy Efficiency Class: D (at a range of energy efficiency classes
from A+++ to D)
- Max. extraction rate: 365 m3/h
- Noise max. Normal Level: Noise, max. speed in normal us: 64 dB
dB*
Features
#NAME?

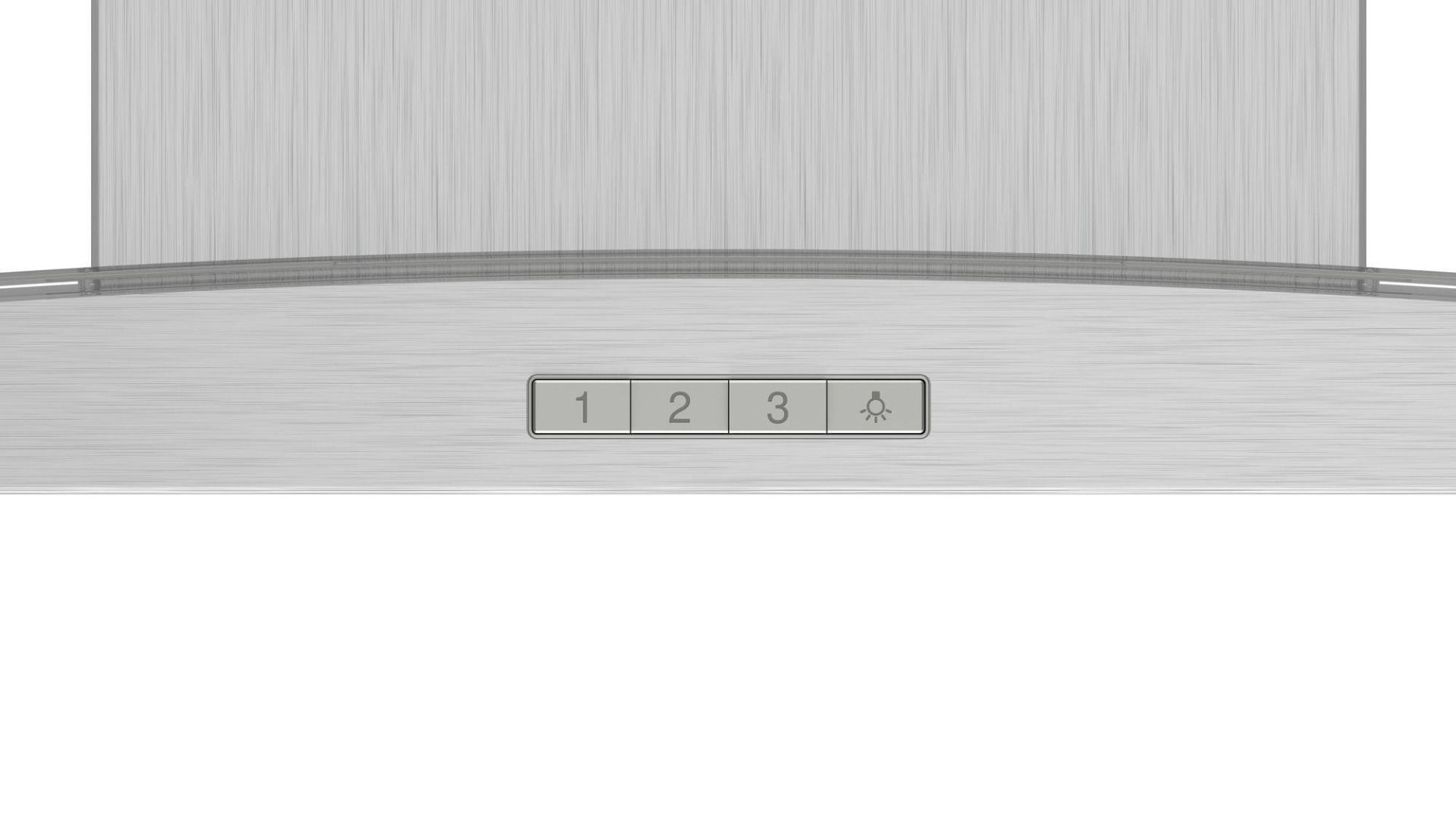

- 3 power levels
- 2 x 1.5W LED light
- Colour Temperature: 3500 K

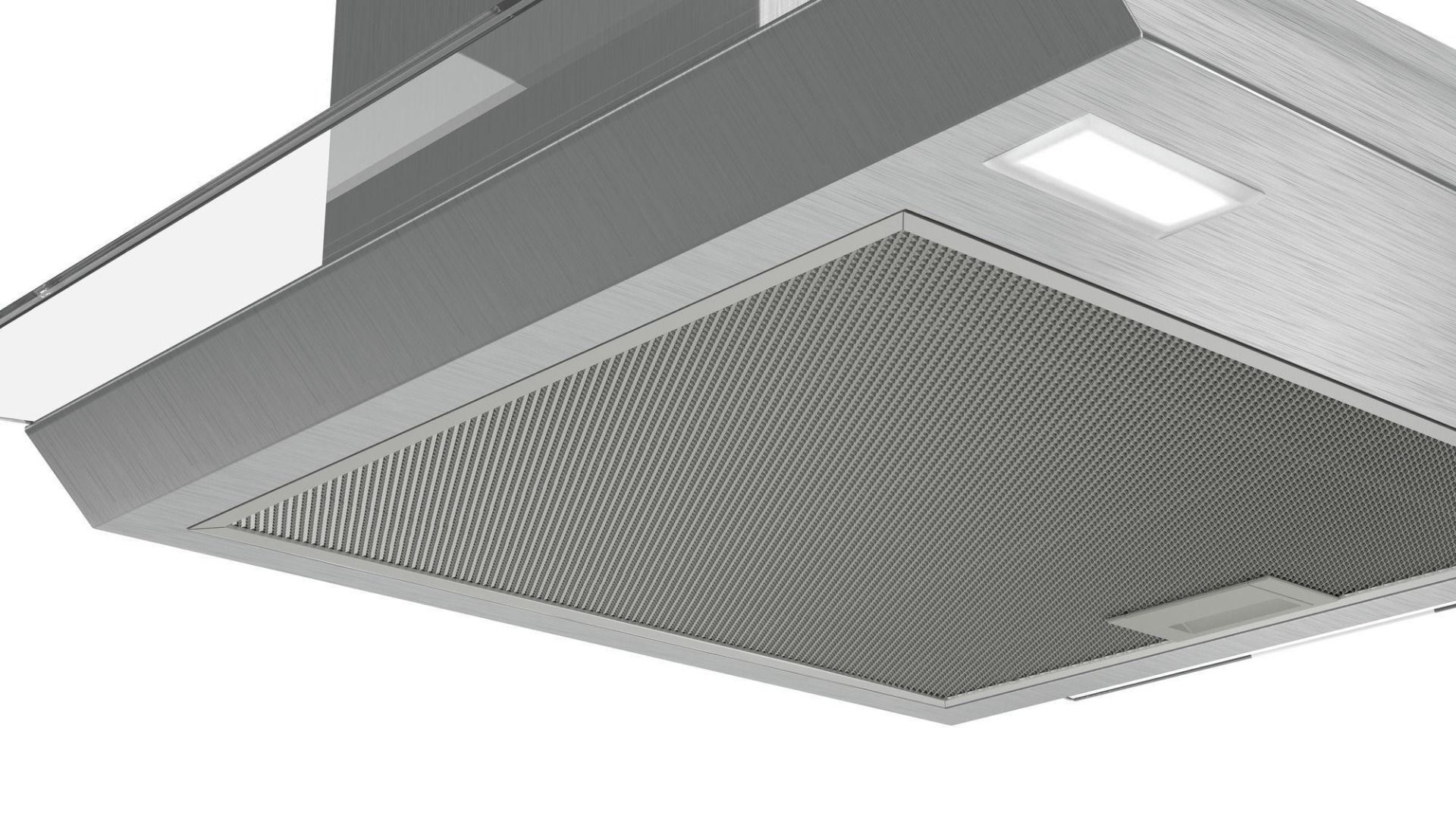

- 1 removable metal grease filter cassette
#NAME?
Design
#NAME?
#NAME?
Performance/technical information
#NAME?
#NAME?
kit (accessory) needed
- Maximum extraction rate exhaust air 365 m³/h according to EN
61591
- Noise level according to EN 60704-3 and EN 60704-2-13 at max.
normal use exhaust air: 64 dB(A) re 1 pW
- With the Clean Air Plus recirculation kit (available as optional
accessory) your appliances reaches:
- Extraction rate in recirculation mode: Max. normal use:240m³/h
- Noise level in recirculation mode: Max. normal use:65 dB(A) re 1
pW
- Power rating: 100 W
- Light Intensity: 113 lux
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

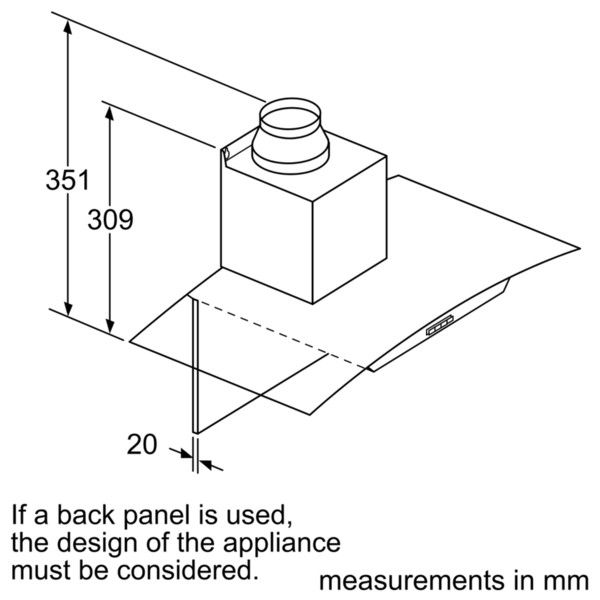

- Dimensions exhaust air (HxWxD): 617-947 x 600 x 488 mm
- Dimensions recirculating (HxWxD): 617-1057 x 600 x 488 mm
- Dimensions recirculating with CleanAir module (HxWxD):
- 686 x 600 x 488mm - mounting with outer chimney
- 815-1145 x 600 x 488 mm - mounting with telescopic chimney
- Blower Efficiency Class: E*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 53.1 kWh/year*
Optional accessories
#NAME?
* In accordance with the EU-Regulation No 65/2014
