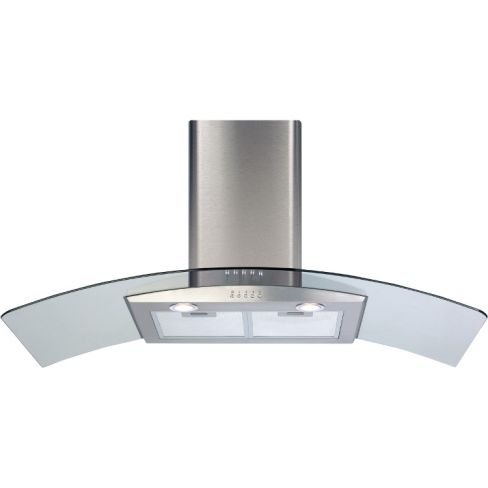

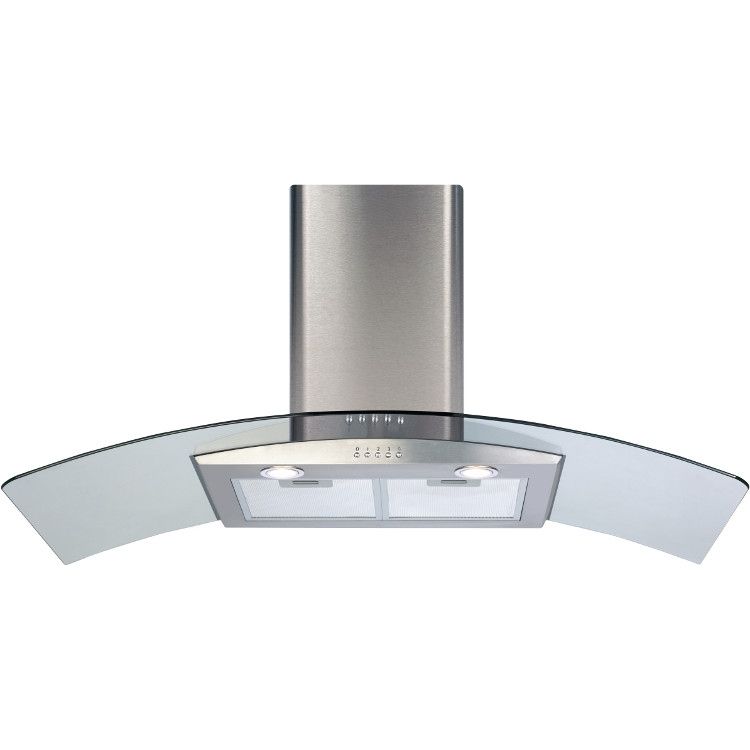

CDA ECP102SS Hood

CDA ECP102SS
Chimey Hood in Stainless Steel
Curved glass extractor
FEATURES
Ducted/ re-circulating installation
3 speeds
Aluminium grease filters
Push button control


Technical Specification

Required height over gas hobs: 700 mm (min)
Required height over electric hobs: 600 mm (min)
Power supply: 3 A
Mains lead length: 1 m
Mains lead rating: H05VV-F m
Protection class: Class I
Outlet diameter: 120mm/150mm mm
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Outlet diameter: 150mm with a 120mm reducer mm
Rated electrical power: 104 W
Motor Input: 100.0000 W
Rated electrical power: 104 W

Optional Accessories
Ducting kit code: 120mm, AED 51/53/54
Ducting kit code: 150mm, AED 61/63/64
Charcoal filter for re-circulation: CHA12 (pack of 1)
Charcoal filter for recirculation : 0

Fitting Notes
Fitting note: please ensure that you check the ceiling heightis sufficient to allow the required clearance between the hob and extractor
Filters
Charcoal filters: CHA12 (pack of 1)
Number of layers: 4
Number of grease filters: 2
Number of charcoal filters (optional): 1
Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
Charcoal filter code: CHA12 (pack of 1)
Extraction Rates And Noise
Extraction rate at first speed: 224 m3/hr
Noise level at first speed: 51 dBA
Extraction rate at second speed: 315 m3/hr
Noise level at second speed: 58 dBA
Extraction rate: 377 m3/hr
Noise level: 60 dBA
Extraction rate at third speed: 377 m3/hr Noise level at third speed: 60 dBA Lighting Number of lights: 2 Type of light: LED Additional lighting: 0 Energy Energy rating: D Misc Information WEEE Category: 01
