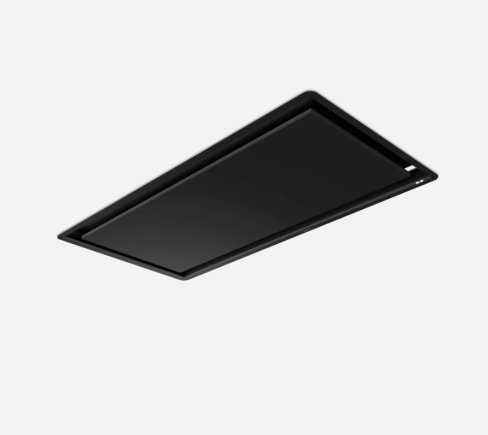

Elica ILLUS-PLS-RM-BK 100cm Wide Ceiling Integrated - Black - A Rated, for Remote Motor Setup (motor not included)

Flush with the ceiling, this kitchen hood blends right into the room. Its design cleverly conceals the extraction system, which can turn on, adjust, and turn off by itself. Or through an app and voice assistant.

The beauty of being unnoticed.

Cleaner air, Wi-Fi controls. Designed to blend into any ?setting?, this hood is the ideal solution for small spaces because it frees up space above the hob. Available in white, black, or with a stainless steel frame and a customisable plasterboard panel to match the ceiling's finish, it complements any kitchen style. The light intensity and temperature (from warmer to cooler tones) are adjustable; the extraction core removes smoke and odors from the kitchen all day long. A smart sensor detects cooking fumes and harmful substances (e.g. cleaning agents or cigarette smoke) and activates, automatically setting the most suitable extraction power. When the air quality has returned to an ideal level, it automatically switches off. The filters are regenerable and can last up to 3 years, thereby reducing the environmental impact. Last but not least, Illusion is equipped with Wi-Fi connectivity, allowing it to communicate with you via an app.

Connex
Remote controls, or automatic operation.
Everything is possible, with our app and latest generation hoods. Switch the hood on or off via a voice assistant or smartphone. Automatic or remote adjustment of light and power. Know when to replace the filter or how to contact our customer support. Connection between you and Elica is now total and very handy.
SilentPro
Whisper-quiet operation even on the highest power setting.
Quiet, and just let the cooking speak.This innovation reduces disturbing noises made by household appliances, even when they are on the highest setting. Finally, you can carry on a conversation or enjoy music surrounded only by the sizzling sound of the food you are making.
EcoFair
Respect for the environment in all our choices.
Let?s reduce consumption and save energy. Each of our household appliances has been designed to obtain maximum energy saving, both in cooking and air extraction functions. This also makes it easier for you to conserve energy and reduce consumption, at least in the kitchen.
ExtrAir
ExtrAir
For cleaner air, both indoors and outdoors.
Good air is in reach. Sensors that detect quantity and quality of vapours and odours. Reduction of energy consumption. Removal of steam and moisture. Cleaner air does everyone good, and helps the environment too.
Flexys
There?s a solution for each and every one of you.
Infinite options, extreme versatility. The Elica hood and hob product line represents the widest range of products available on the market in terms of types, size, design, layout and features. We are ready to bet: there's no way you won't find the perfect solution for your kitchen.
Total Integration
Total & Perfect Look.
Our household appliances discreetly adapt to the design and features of your kitchen. The variety of solutions and finishing touches blend in perfectly whatever your taste in style may be.
Airmatic
Clean air, healthy air. Automatically.
A sensor tests air-quality at any moment of the day. If it detects vapours, even polluting vapours (like solvents or cigarette smoke), the hood will switch on and adjust extraction power automatically. And will switch off once the air is clean again.
Tune White
Warm or cold, the light tone of your taste.
You can now regulate the LED colour tone of your hood from cold white to warm white. The colour of the light blends in perfectly with the other lights in your living space, thus creating a uniform atmosphere.
Dim Light
Lighting: as much and however you want it.
With this feature, you can adjust the lighting of your hood: bright light or dim light, as you prefer.
Generic Data
Weight (Kg)
H30: 22,5
NO MOTOR: 17,3
H16: 19,5
Finishing
Plasterboard (not included)+ Stainless Steel Frame

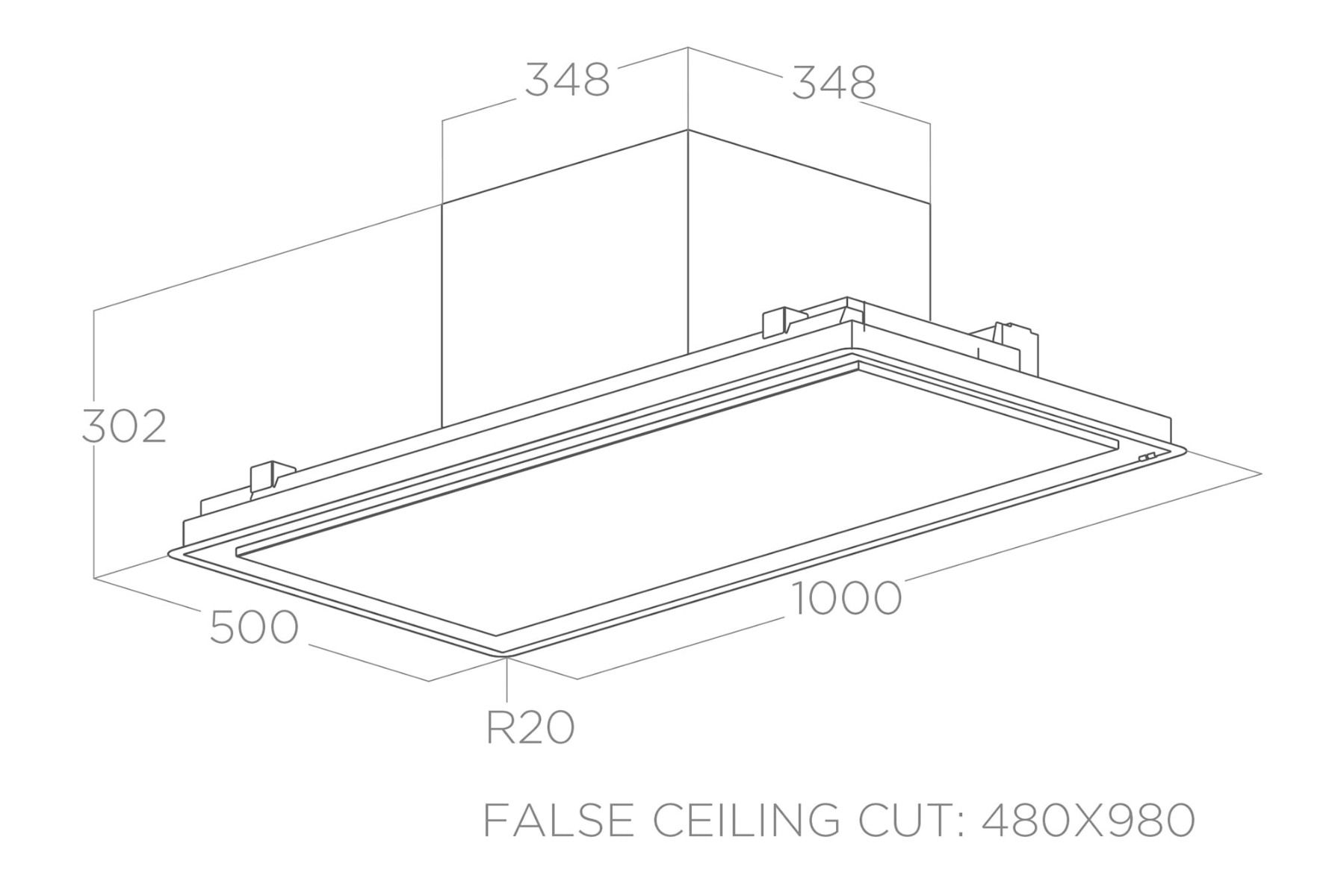

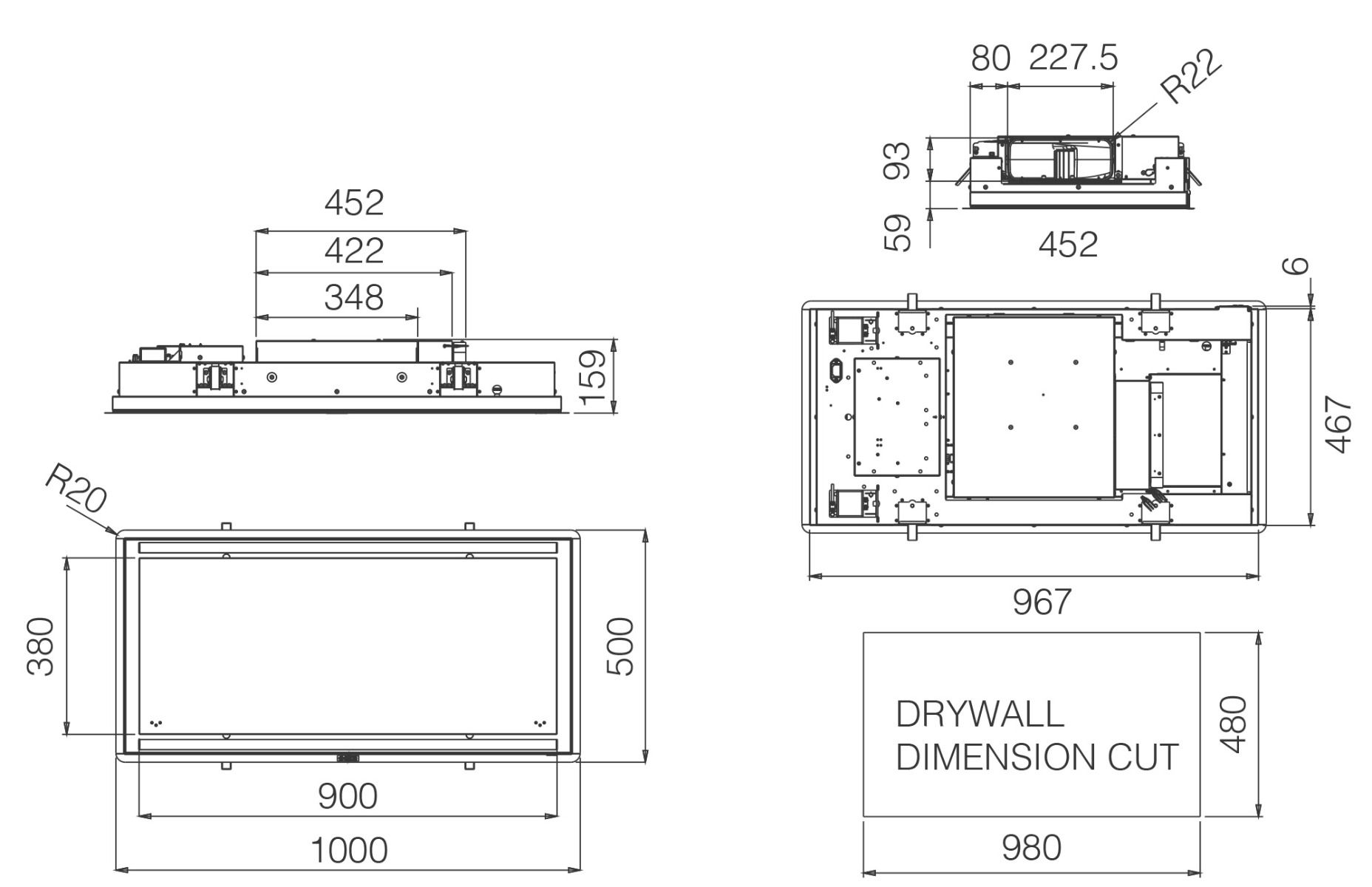

Dimensions (cm)
100x50
Energy Class
A
Minimum distance from wall unit induction/radiant hob
H30: 60cm
NO MOTOR: 60cm
H16: 65cm
Minimum distance from wall unit gas hob
70cm
Duct Transition
150mm
Lighting
Strip Led 2x14 W - 2700 K - 5000 K - 563 LUX
Absorption
H30: 298W
NO MOTOR: 428W
H16: 303W
Extraction
Airflow Min-Max
Airflow Min-Max
H30: 200m?/h - 770m?/h
NO MOTOR: 230m?/h - 850m?/h
H16: 275m?/h - 720m?/h
Noise level Min-Max
H30: 40db(A) - 53db(A)
NO MOTOR: 25db(A) - 56db(A)
H16: 51db(A) - 68db(A)
Controls
3S+2B Remote control
