Elica NT-FIT-RAW-70 72cm Wide Venting 4 Zone Hob - Black - A Rated with 1 Bridge Zone

Innovative finish and top-notch features, all in 60 cm: this is the compact extractor hob with a matt black, anti-fingerprint, and scratch-resistant finish that’s very easy to clean.

Compact in size, powerful in performance, all-new finish. The bold, compact design, with matt black glass, complements any kitchen style and will look stunning for years to come. The anti-fingerprint, scratch-resistant surface, designed to withstand everyday use, ensures effortless cleaning. The bridge function allows you to combine two zones for larger cookware, while the slider control ensures easy control of cooking functions. Fumes and odours are automatically captured by the powerful, invisible, and silent extraction core. The long life odour filters are easy to remove, and a special valve drains any accidental spills, ensuring total hygiene.

Bridge Zone
XXL pots: there is room for them too.
Having problems with oval-shaped or bigger-sized pots? This function transforms two cooking zones into a bigger size one, ensuring you the same power level and constant temperature for a homogeneous cooking
Comfort Silence
The power is there, but is silent.
Kitchens are ever more being designed as open spaces, so blending all in one with the living room. Having a hood is becoming a must, as it will ensure perfect extraction of fumes and odours without generating disturbing noises. The extremely low noise level of our hoods and extractor hobs, ensure you the maximum well-being, so you can cook and hold a conversation with ease while you’re busy preparing your recipe.
Autocapture
Automatic extraction, energy saving.
A function that does it all on its own. The extraction power of the hood is adjusted depending on the type of cooking that has been commenced. The smart system immediately understands when to reduce or switch it off, thus optimising your energy consumption.
Long Life Filter++
Cleaner air over time.
These filters have been designed to guarantee maximum performance and odour filtering efficiency far above than average filters. Thanks to their regenerating capacity, their durability is from 3 to 5 years. No more replacements, waste or troubles in their maintenance.
These filters have been designed to guarantee maximum performance and odour filtering efficiency far above than average filters. Thanks to their regenerating capacity, their durability is from 3 to 5 years. No more replacements, waste or troubles in their maintenance.
Generic Data
Finishing
Matt black glass

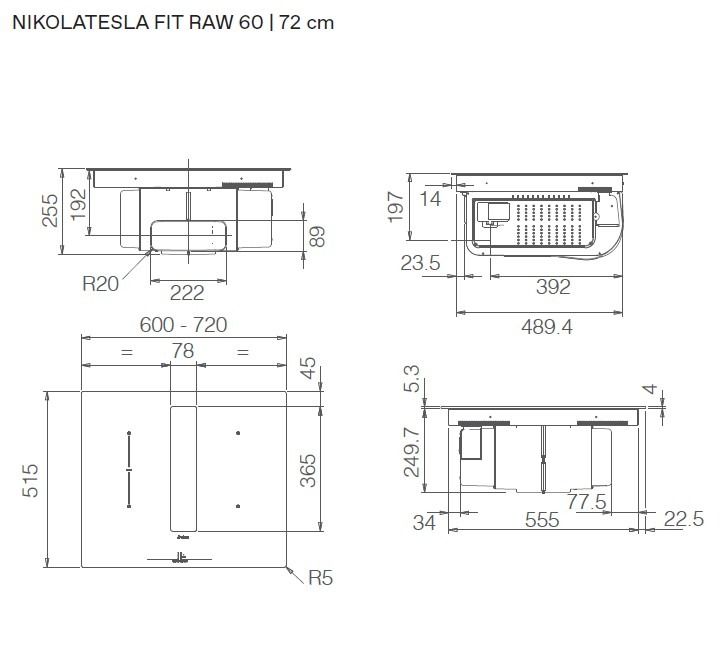

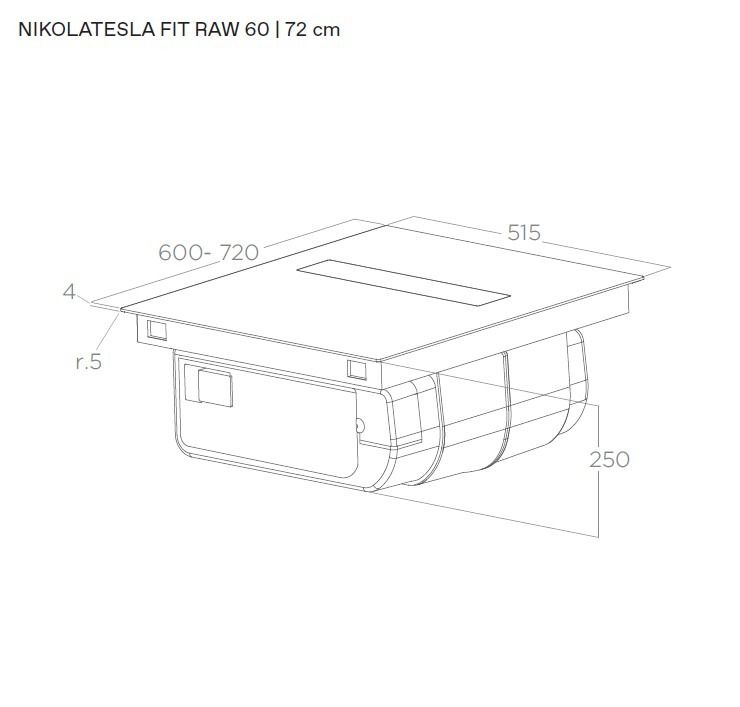

Dimensions (cm)
60x51,5x25
Energy Class
A

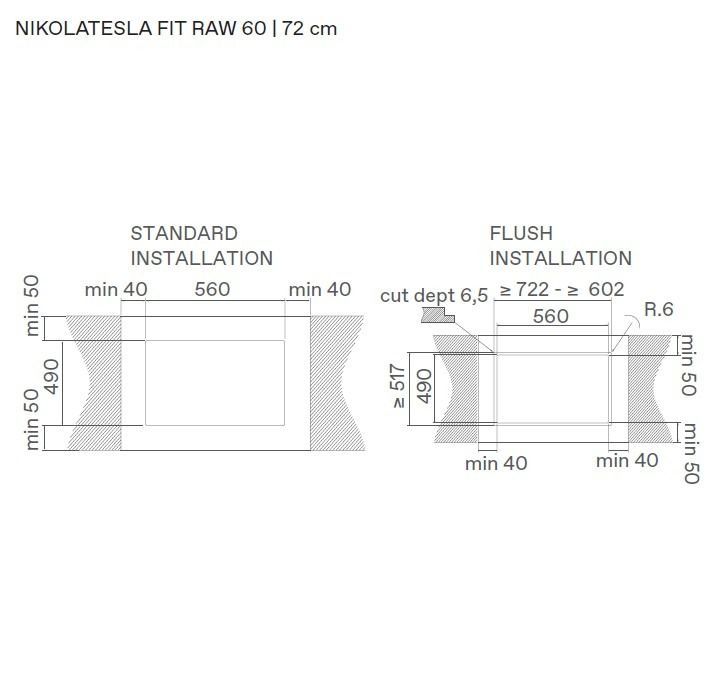

Cut out
56x49 cm
Total absorption
7,4 kW
Extraction
Airflow min duct-out
220m³/h
Airflow max duct-out
500m³/h
Airflow boost duct-out
620m³/h
Airflow min filtering
135m³/h
Airflow max filtering
420m³/h
Airflow Filtering
520m³/h
Suction speed
5,1m/s
Noise level Min-Max aspiration
43db(A) - 61db(A)
Noise level Min-Max filter
44db(A) - 68db(A)
Controls
4S+B Slider touch control
Absorption
160 W
Cooking
Controls
9P+B slider touch control
Voltage
220-240V / 380-415V 2N / 380-415V 3NV
Power limitation
3,1kW - 4,5kW
Number of bridge zones
1 (SX)
Front left cooking zone
Front left cooking zone
OCTA 21x19,1 cm - 2,1/3 kW
Right front cooking zone
Ø 16 cm - 1,2/1,4 kW
Rear left cooking zone
OCTA 21x19,1 cm - 1,65/1,85 kW
Rear right cooking zone
Ø 20 cm - 2,3/3 kW
