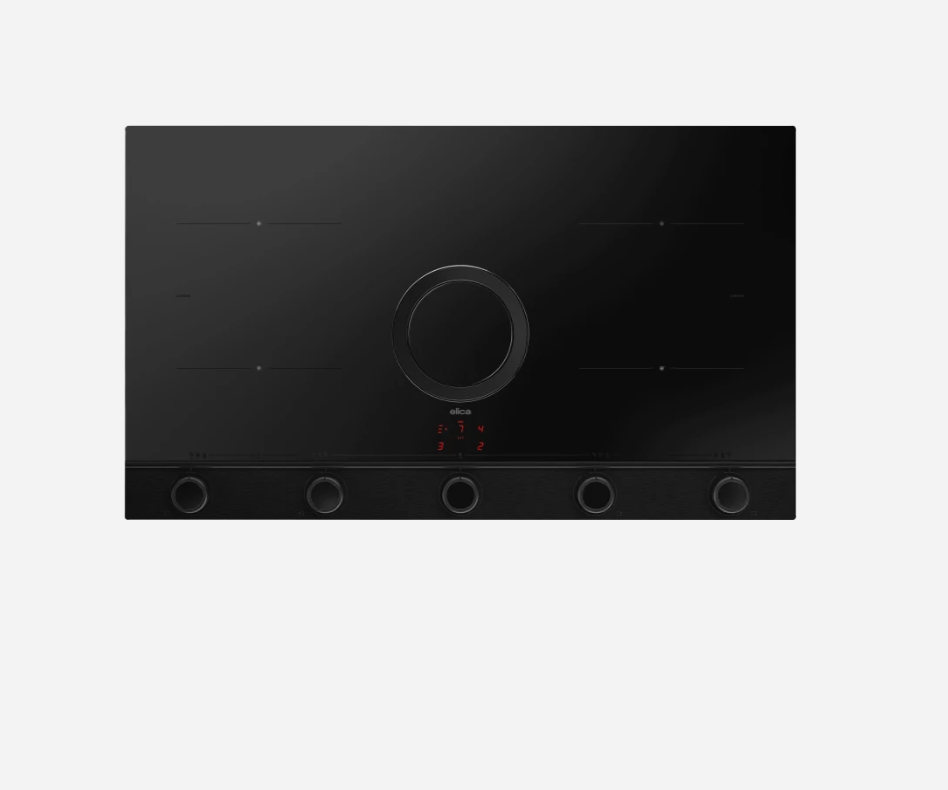

Elica NT-UNP-EVO-RAW 90cm Wide Venting 4 Zone Hob - Matt Black - A++ Rated with 2 Bridge Zones

A sleek matt black glass finish, fixed click-release knobs, and unrivalled extraction power: discover the most stunning superpowers of analogue control.
All at your fingertips. With a new finish.



The exemplary design of this extractor hob has reached a new level: thanks to its matt black glass finish, say goodbye to unsightly fingerprints and scratches. And say hello to extraordinary extraction power and ergonomic knobs that let you effortlessly manage cooking modes and settings - just like a chef at their station. It is equipped with many professional-style cooking features designed to melt butter or chocolate without constant stirring; elevate slow cooked meals; prevent boiling water from spilling over. In addition, you can bridge two cooking zones to cook with large pots and pans. The combined odour, grease, and moisture filters work quietly and efficiently, capturing fumes and vapours while ensuring low energy consumption, thanks to the latest generation motors.

Melting Mode
Everything melts for the better.
Tired of melting the butter and chocolate and having to stir them continually or burning them? The secret? Keeping the temperature always below 50°, this will never happen again.
Warming Mode
Slow cooking, delicious results.
Conceived for slower cooking preparations, ideal when warming up milk or broths, for the preparation of custards or sauces preventing them to overheat and keeping your prepared food warm.
Fast Boiling
For those who lack time.
It is the solution for quick recipes. Just with a gesture, set the maximum power for 10 minutes and voilà, boiling point will be reached in 30% less time than it normally does.
It is the solution for quick recipes. Just with a gesture, set the maximum power for 10 minutes and voilà, boiling point will be reached in 30% less time than it normally does.
Bridge Zone
XXL pots: there is room for them too.
Having problems with oval-shaped or bigger-sized pots? This function transforms two cooking zones into a bigger size one, ensuring you the same power level and constant temperature for a homogeneous cooking
Generic Data
Finishing
Matt black glass & black anodized aluminium

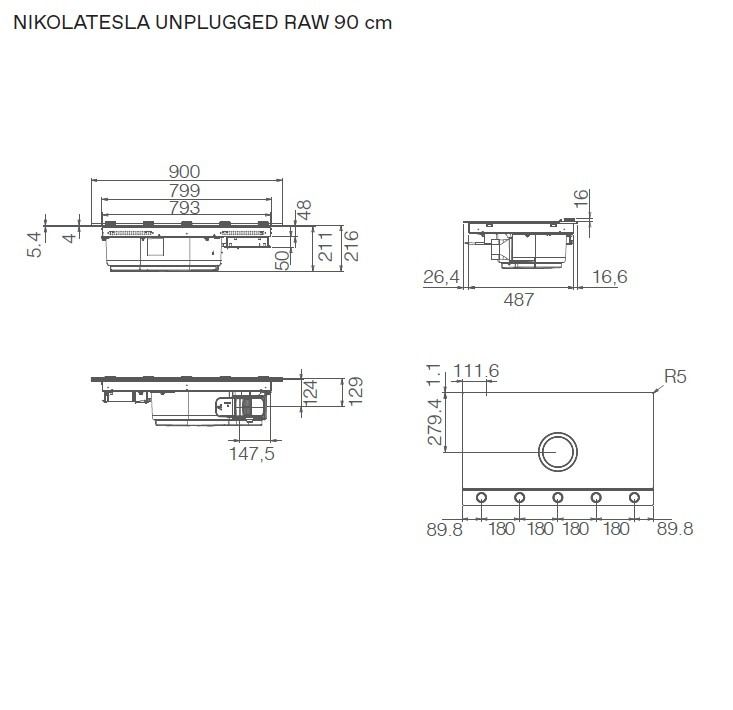

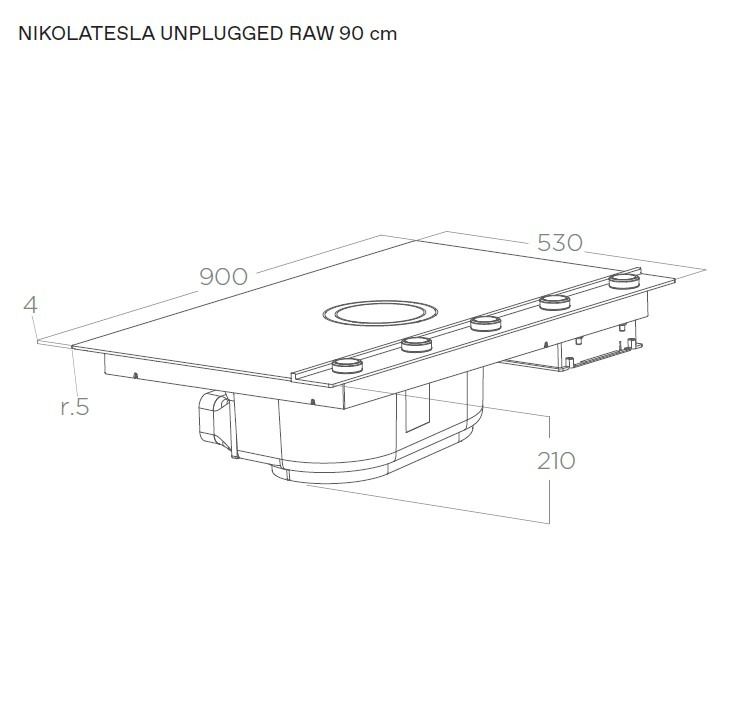

Dimensions (cm)
90x53x21
Energy Class
A++

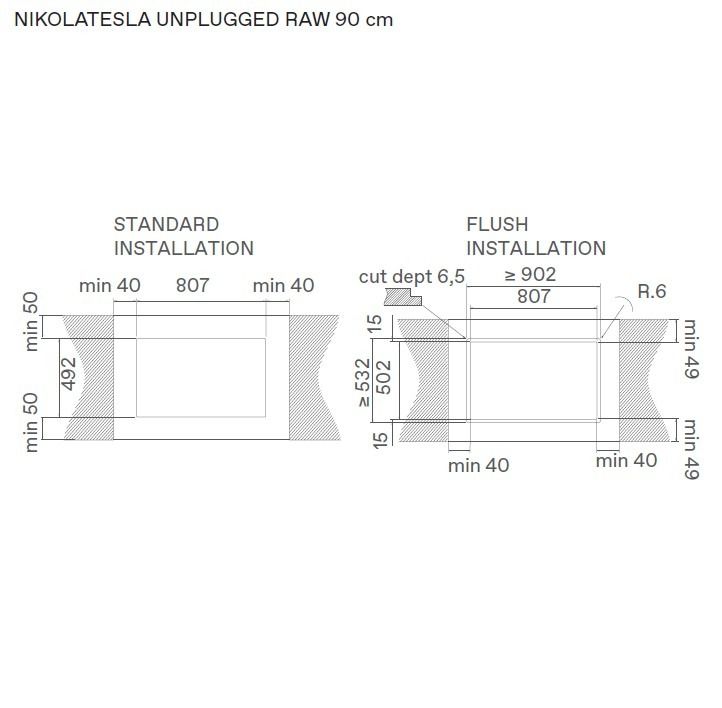

Cut out
80,7x49,2 cm
Total absorption
7,4 kW
Extraction
Airflow min duct-out
130m³/h
Airflow max duct-out
525m³/h
Airflow boost duct-out
620m³/h
Airflow min filtering
130m³/h
Airflow max filtering
505m³/h
Airflow Filtering
600m³/h
Suction speed
5,1m/s
Noise level Min-Max aspiration
34db(A) - 67db(A)
Noise level Min-Max filter
38db(A) - 71db(A)
Controls
Knobs 9V+I
Absorption
175 W
Cooking
Controls
Knobs 9P+I
Voltage
220-240V / 380-415V 2N / 380-415V 3NV
Power limitation
4,5kW
4,5kW
Number of bridge zones
2
Front left cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Right front cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Rear left cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Rear right cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
