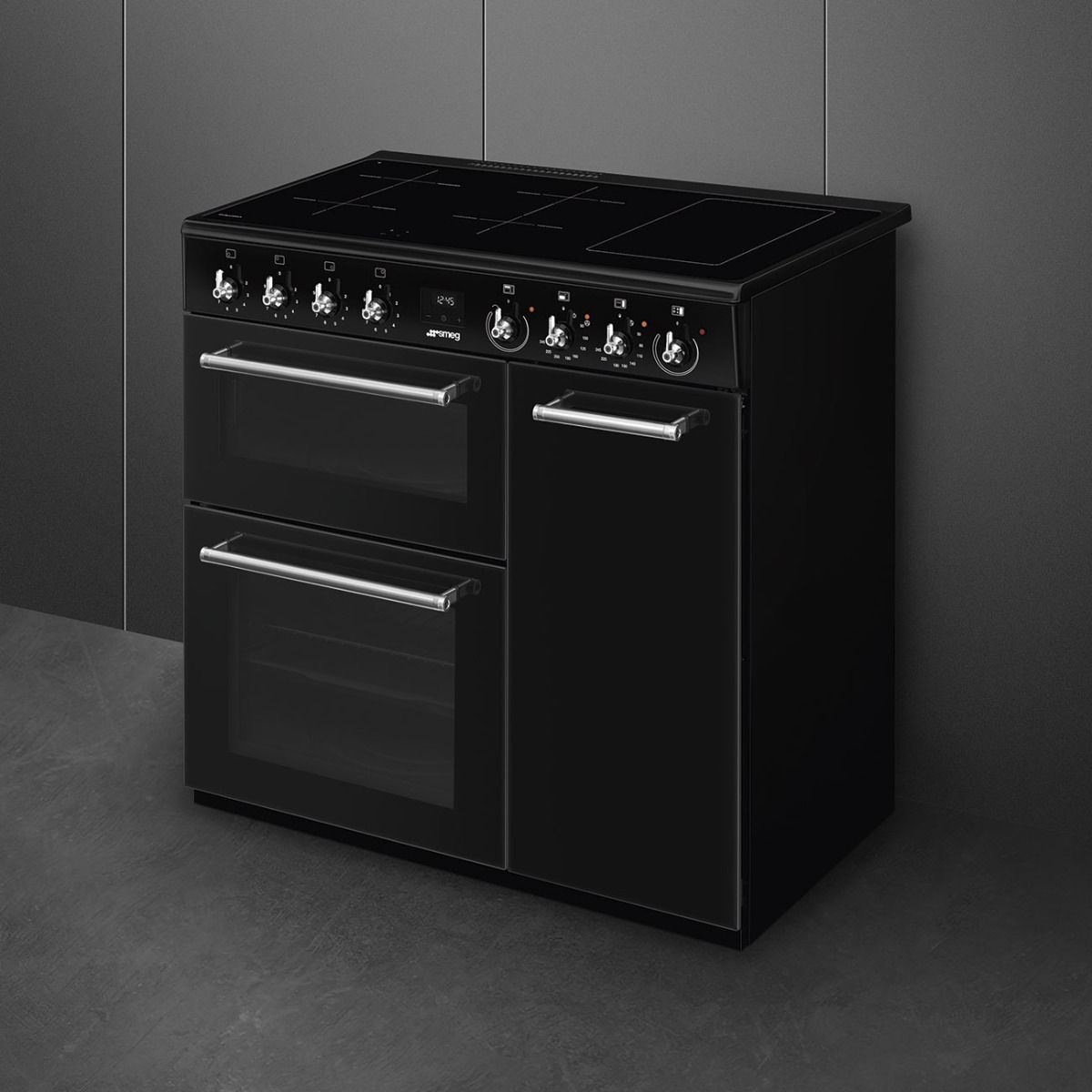

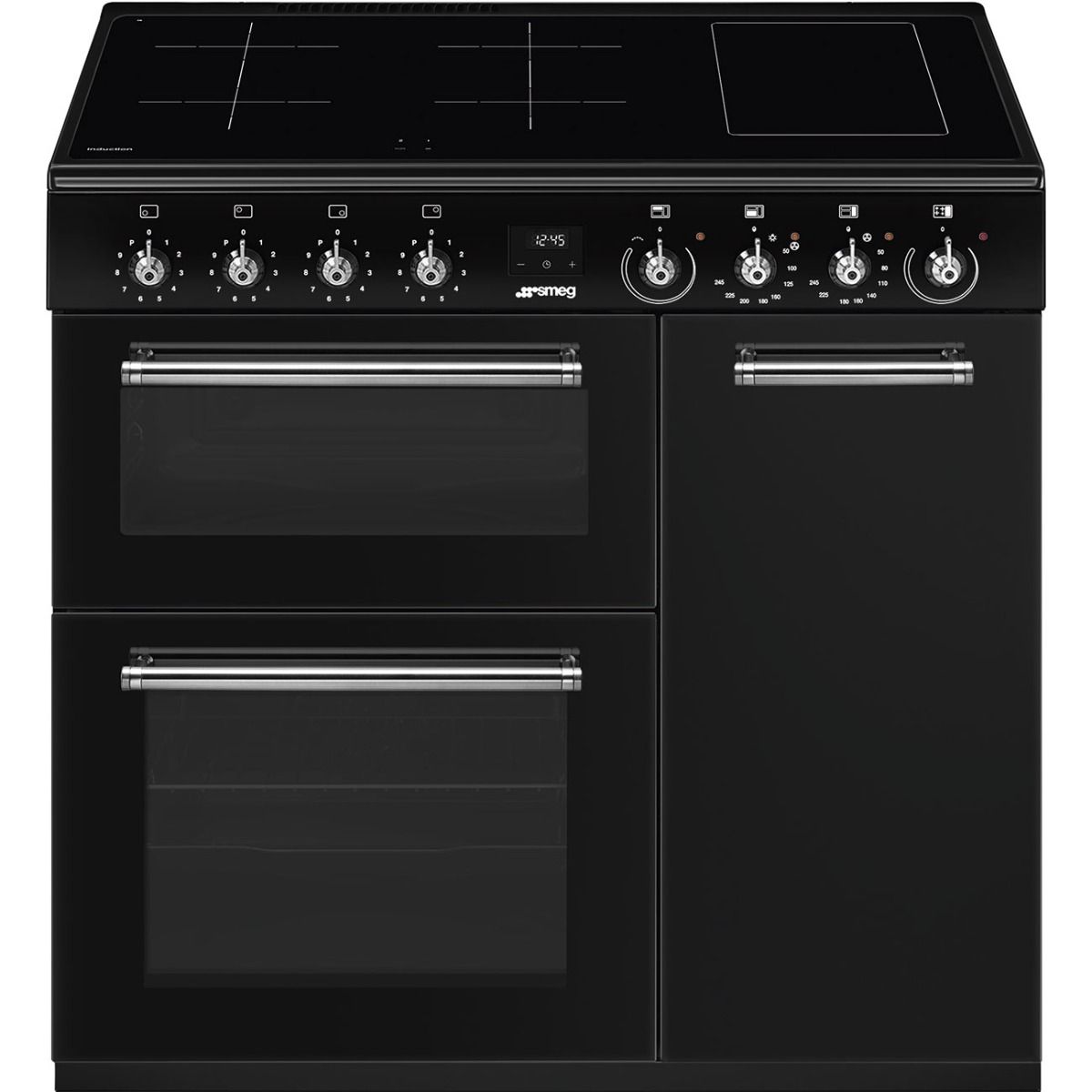

Smeg CX93IMBL Range Cooker

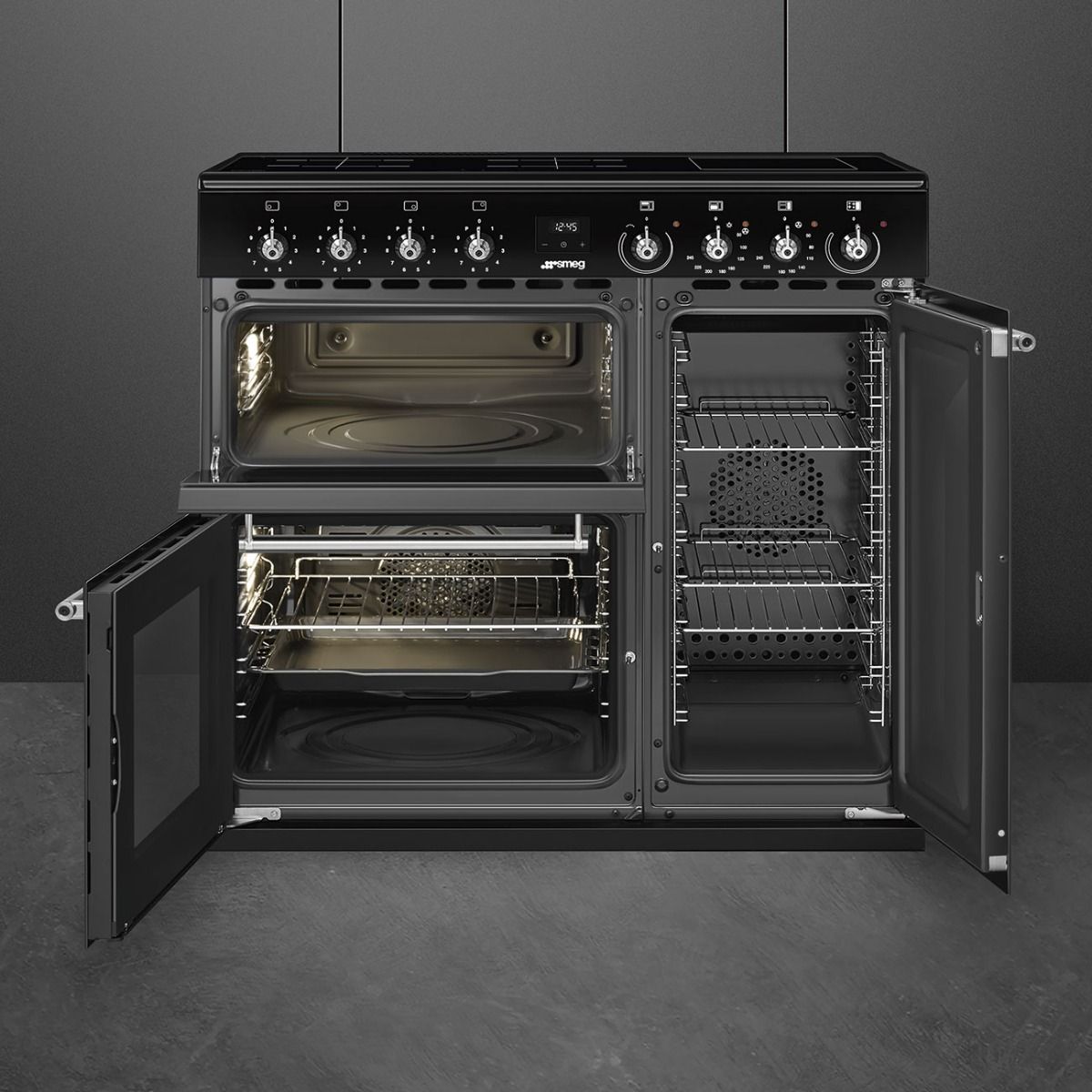

Smeg CX93IMBL 90cm Concert Electric Range Cooker with Induction Hob Top Black
Aesthetics

Colour:Black
Design:Standard
Finishing:Gloss Black
Aesthetics:Classic
Command panel finish:Enamelled metal
Series:Concert
Material:Enamelled
Hob colour:Black enamel

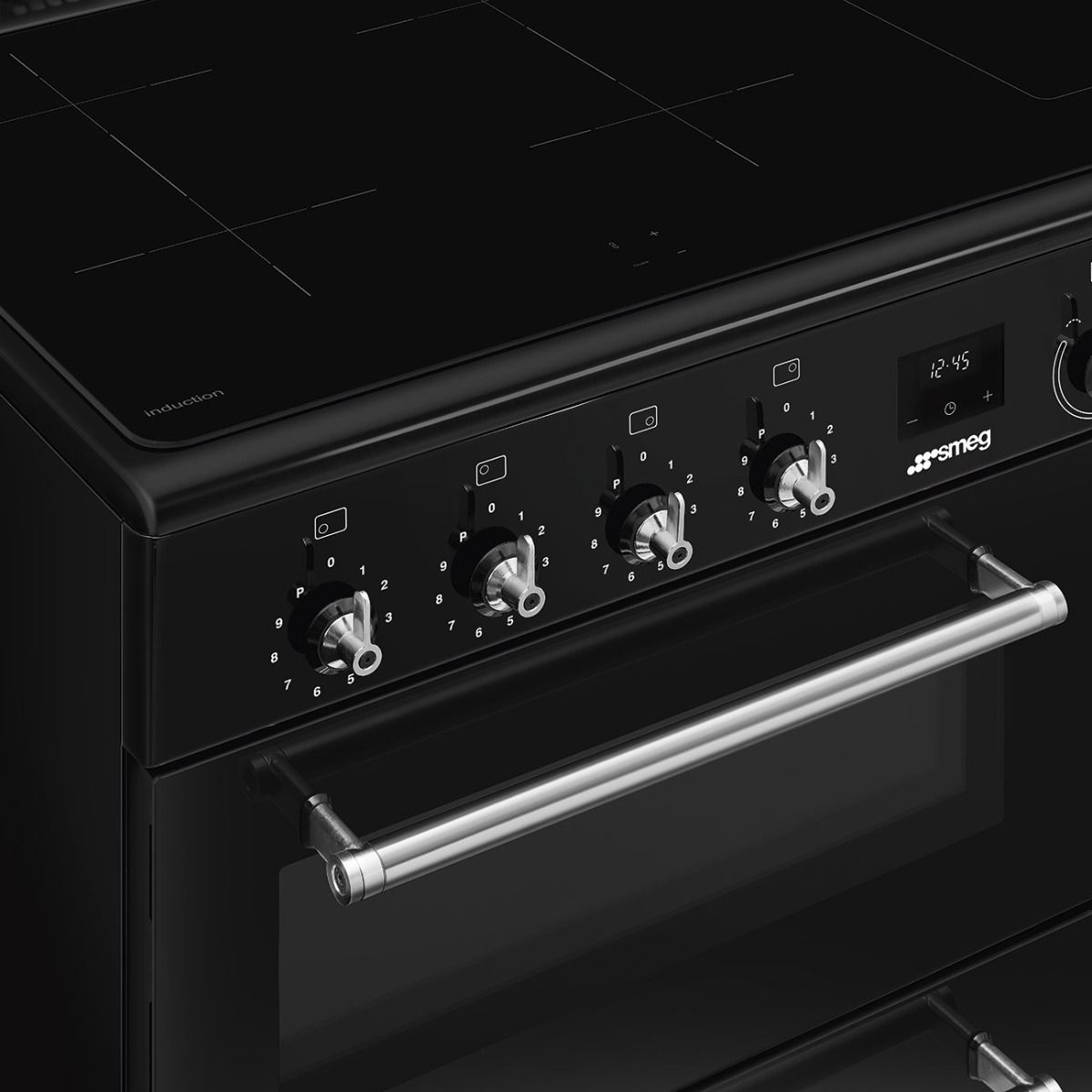

Type of control setting:Hybrid: Knobs + Digi Touch
Control knobs:Smeg Classic
Controls colour:Stainless steel
No. of controls:8
Display:Touch
Door:With frame
Glass type:Black
Handle:Smeg Classic
Handle Colour:Brushed stainless steel
Feet:Black
Type
Installation in column: Installation in column Induction: The work of these hobs is based on the principle of electromagnetic induction. The heat is generated directly in the bottom of the pan during its contact with the hob.
Product Family:Cooker
Cooker size:90x60 cm
Cooker configuration:Full electric
Hob type:Induction
Hob energy type:Electric
N. of ovens:3
Main oven type:Thermo-ventilated
Type of second oven:Thermo-ventilated
EAN code:8017709340636
Installation positioning of the appliance:Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Programs / Functions
Traditional cooking functions
Circulaire: The combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food.Circulaire

Options Main Oven
Timer:Yes
End of cooking acoustic alarm:Yes
Minimum Temperature:50 °C
Maximum temperature:245 °C
Programs / Functions Auxiliary Oven
Cooking functions cavity 2:1
Options Auxiliary Oven
Minimum Temperature:50 °C
Maximum temperature:245 °C
Programme / Functions Third Oven
No. of functions third oven:1
Options
TWIN_ZONE_72dpi
Bridge option:Yes
Options Third Oven
Minimum Temperature:50 °C
Maximum temperature:260 °C

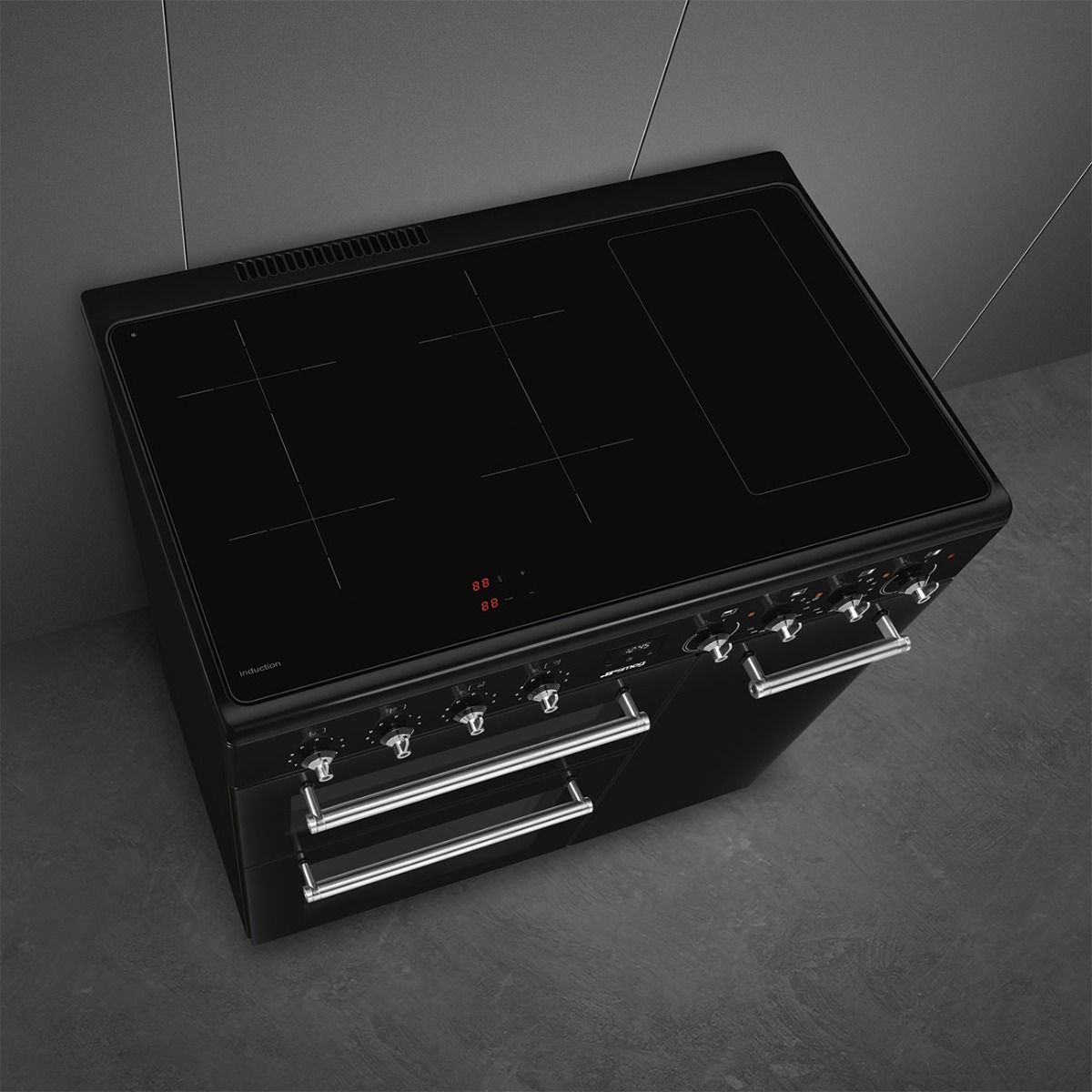

Hob technical features
Total no. of cook zones:4
Number of Flexible zones:2
1st zone position:Front left
2nd zone position:Rear left
3rd zone position:Rear right
4th zone position:Front right
1st zone type:Induction - single
2nd zone type:Induction - single
3rd zone type:Induction - single
4th zone type:Induction - single
1st zone dimensions:- Ø 18.0 cm
2nd zone dimensions:- Ø 18.0 cm
3rd zone dimensions:- Ø 18.0 cm
4th zone dimensions:- Ø 18.0 cm
1st zone power:1.50 kW
2nd zone power:1.50 kW
3rd zone power:1.50 kW
4th zone power:1.50 kW
1st zone booster power:2.00 kW
2nd zone booster power:2.00 kW
3rd zone booster power:2.00 kW
4th zone booster power:2.00 kW
Main Oven Technical Features
Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 4 different cooking levels. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. The inner door glass: can be removed with a few quick movements for cleaning. Air cooling system: to ensure a safe surface temperatures. Side lights: Two opposing side lights increase visibility inside the oven. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres.
Net volume of the cavity:61 litres
Gross volume, 1st cavity:70 l
Cavity material:Easy clean enamel
Shelf positions:4
Type of shelves:Metal racks
No. of lights:1
Light type:Halogen
Light power:40 W
Fan number:1
Cooking time setting:Start and Stop
Door opening:Side opening
Removable door:Yes
Full glass inner door:Yes
Removable inner door:Yes
Total no. of door glasses:3
No.of thermo-reflective door glasses:1
Safety Thermostat:Yes
Cooling system:Tangential
Circular heating element - Power:2000 W
Temperature control:Electro-mechanical
Second Oven Technical Features
Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 9 different cooking levels. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. The capacity indicates the amount of usable space in the oven cavity in litres. Double glazed doors: Number of glazed doors. Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings.
Net volume of the second cavity:62 litres
Cavity material:Easy clean enamel
Shelf positions:9
Type of shelves:Metal racks
Fan number:1
Door opening:Side opening
Removable door:Yes
Full glass inner door:Yes
No. total door glasses:2
No. thermo-reflective door glasses:1
Safety Thermostat:Yes
Cooling system:Tangential
Temperature control:Electro-mechanical
Third Oven Technical Features
Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 2 different cooking levels. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. The capacity indicates the amount of usable space in the oven cavity in litres. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step.
Net volume, 3rd cavity:35 l
Gross volume, 3rd cavity:41 l
Cavity material:Easy clean enamel
Shelf positions:2
Type of shelves:Metal racks
Door opening:Flap down
Removable door:Yes
Full glass inner door:Yes
Removable inner door:Yes
No. total door glasses:3
No. of thermo-reflective door glasses:1
Safety Thermostat:Yes
Cooling system:Tangential
Grill type:Electric
Tilting grill:Yes
Large grill - Power:2700 W
Temperature control:Electro-mechanical
Performance / Energy Label

Energy efficiency class:A
GAS - Energy consumption in fan-forced convection, first cavity:2.99 MJ
Energy consumption forced air convection (kWh) first cavity:0.83 KWh
GAS - Energy consumption conventional mode, first cavity:4.07 MJ
Energy consumption conventional first cavity (kWh):1.13 KWh
Energy consumption for the hob:186 Wh/Kg
Energy consumption zone 1:185 Wh/Kg
Energy consumption zone 2:185 Wh/Kg
Energy consumption zone 3:185 Wh/Kg
Energy consumption zone 4:189 Wh/Kg
Performance /Energy Label - Second Cavity
B: Product energy rating, measured from A+++ to D / G depending on the product family.
Energy efficiency class, second cavity:B
GAS - Energy consumption in forced air convection, second cavity:3.71 MJ
GAS - Energy consumption in forced air convection, second cavity:1.03 KWh
Electrical Connection
Max Power Draw:15200 W
Current:41 A
Voltage:220-240 V
Voltage 2 (V):380-415 V
Frequency:50/60 Hz
Additional connection modalities:Yes, Double and Three Phase
Type of electric cable:Yes, Single phase
Logistic Information
Dimensions of the product HxWxD (mm):900x900x600 mm
Width (mm):900 mm
Product Height (mm):900 mm
Depth (mm):600 mm
Dimensions of the packed product (mm):1015X960X670 mm
Gross weight (kg):97.400 kg
Net weight (kg):86.400 kg
Packed width:960 mm
Packaged depth:670 mm
Height (mm) packed:1015 mm
Maximum stackability:5
Type of packaging:Shrinkwrap
Packaging composition - paper & cardboard (kg):4.740 kg
Packaging composition - polystyrene (kg):2.054 kg
Packaging composition - wood (kg):3.586 kg
Packaging composition - plastic (kg):0.649 kg
