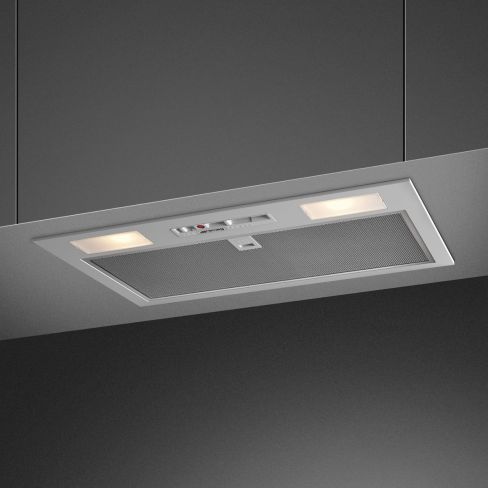

Smeg KI52E3 Hood

Smeg KI52E3 52cm Canopy Hood Silver Grey
Ducting or re-circulating
Most Smeg hoods offer the choice of ducting or re-circulating, so you can choose your preferred method.

Venting/ducting out provides optimum extraction of cooking fumes by expelling them outside, using a vent kit (available as an optional accessory)
This hood has 150mm vent outlet, so you can choose between the following options:

SP150 - Simple vent kit for hoods with a 150mm diameter vent outlet
SP150FLAT - Comprehensive vent kit for hoods with a 150mm diameter vent outlet

Re-circulating extracts the cooking fumes and passes them through active charcoal filters (available as an optional accessory), recirculating the cleaned air back into the room. To find out which charcoal filter your hood needs, see the accessory tab on the hoods specification.

TYPE
Product family:Hood
Hood Type:Integrated hood
Hood width:52 cm
Extraction:Ducted out or re-circulation possible
EAN code:8017709304362
AESTHETICS
Colour:Silver
Aesthetics:Universal
Design:Fully integrated
Material:Painted material
PROGRAMS / FUNCTIONS
No. of speeds:3
CONTROLS
Control setting:Slider
TECHNICAL FEATURES
Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen.
No. of lights:2
Light type:LED
Light power:4 W
Light colour temperature scale (°K):3000 °K
Free outlet maximum capacity:350 m³/h
Motor power:115 W
No. of filters:1
Anti-grease filters:Aluminium
Minimum distance from GAS hob:650 mm
Minimum distance from ELECTRIC hob:500 mm
Vent outlet:150 mm
PERFORMANCE / ENERGY LABEL
C: Product energy rating
Energy efficiency class ( EEC):C
Fluid Dynamic Efficiency class (FDEC):D
Grease Filtering Efficiency Class (GFEC):C
Lighting Efficiency Class (LEC):D
Annual Efficiency Consumption (AEChood):59 KWh/year
Fluid Dynamic Efficiency (FDE):13.1
Lighting Efficiency (LE):13 lux/W
Grease Filtering Efficiency (GFE):75.1 %
Air flow at minumum speed (Qmin):160 m³/h
Maximum extraction rate:335 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin):54 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax):66 dB(A)
Time increase factor (F):1.5
Energy Efficiency Index per first cavity:80.6
Measured air flow rate at best efficiency point (Qbep):153 m³/h
Measured air pressure at best efficiency point (Qbep):196 Pa
Measured electric power input at best efficiency point (Wbep):103 W
Normal Power of the light system (Wl):8 W
Average illumination of the light on the cooking surface (Emiddle):100 lux
Sound power level at highest setting (Lwa):66 dB(A)
ELECTRICAL CONNECTION
Nominal power:103 W
Voltage:220-240 V
Frequency (Hz):50 Hz
Power supply cable length:1000 mm
SPEED 1
Extraction rate IEC 61591:160 m³/h
Noise level IEC 60704-2-13:54 dB(A)
Power:80 W
SPEED 2
Extraction rate IEC 61591:220 m³/h
Noise level IEC 60704-2-13:59 dB(A)
Power:95 W
SPEED 3
Extraction rate IEC 61591:335 m³/h
Noise level IEC 60704-2-13:66 dB(A)
Power:115 W
LOGISTIC INFORMATION
Dimensions of the product (mm):208x522x286
Width:522 mm
Depth (mm):286 mm
Product Height (mm):208 mm
Net weight (kg):4.400 kg
Gross weight (kg):5.400 kg
FR EXTENTION SINGLE GROUP
Packed width:605 mm
Packaged depth:305 mm
Height (mm) packed:370 mm
Dimensions of the packed product (mm):370X605X305
Maximum stackability:9
Type of packaging:Cardboard
Packaging composition - paper & cardboard (kg):1.076 kg
Packaging composition - polystyrene (kg):0.000 kg
Packaging composition - wood (kg):0.000 kg
Packaging composition - plastic (kg):0.007 kg
