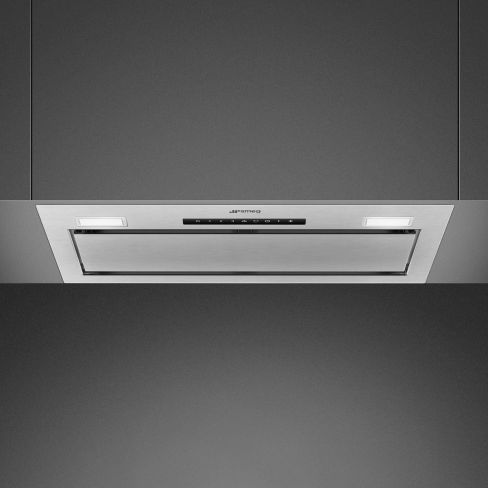

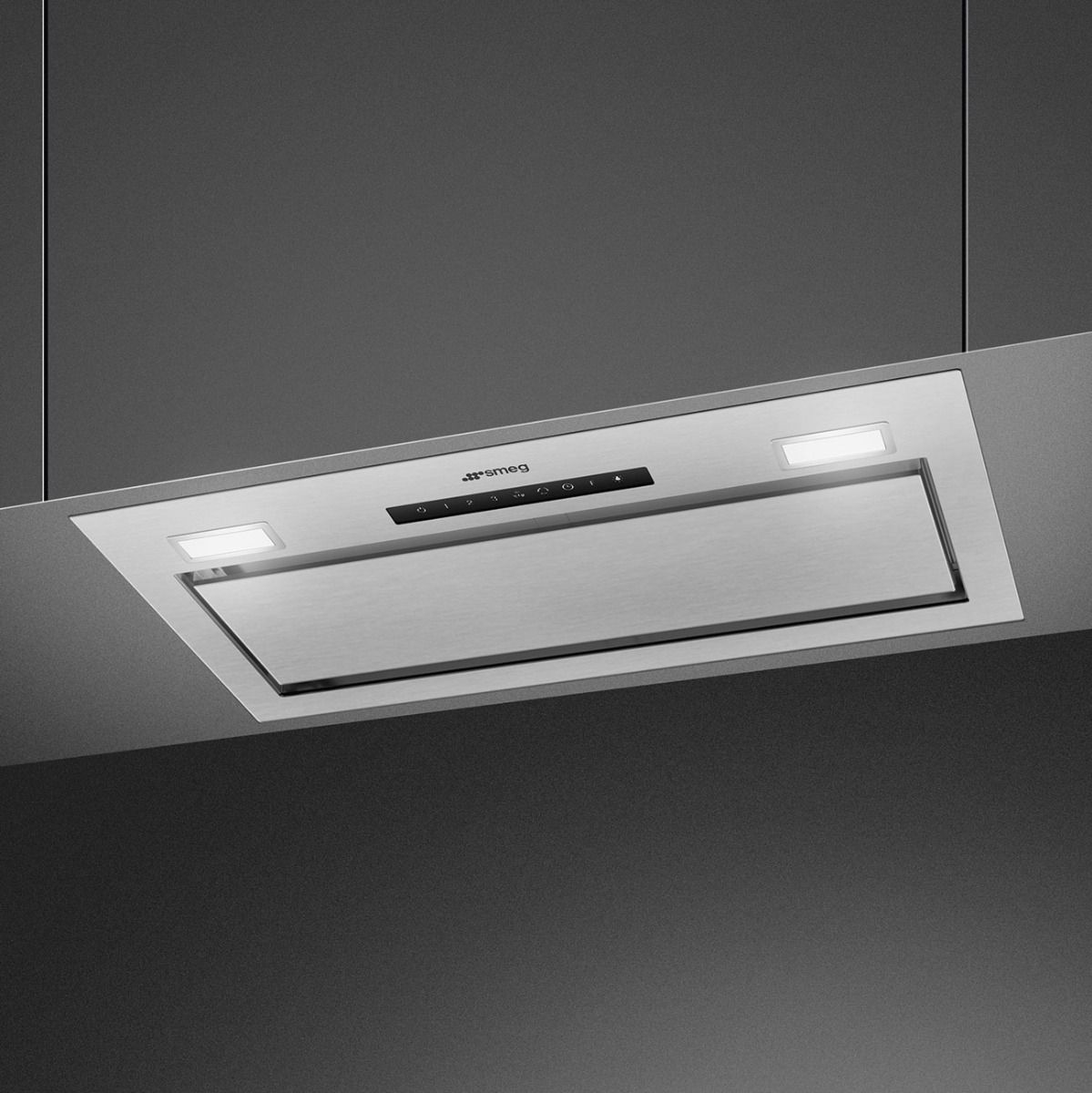

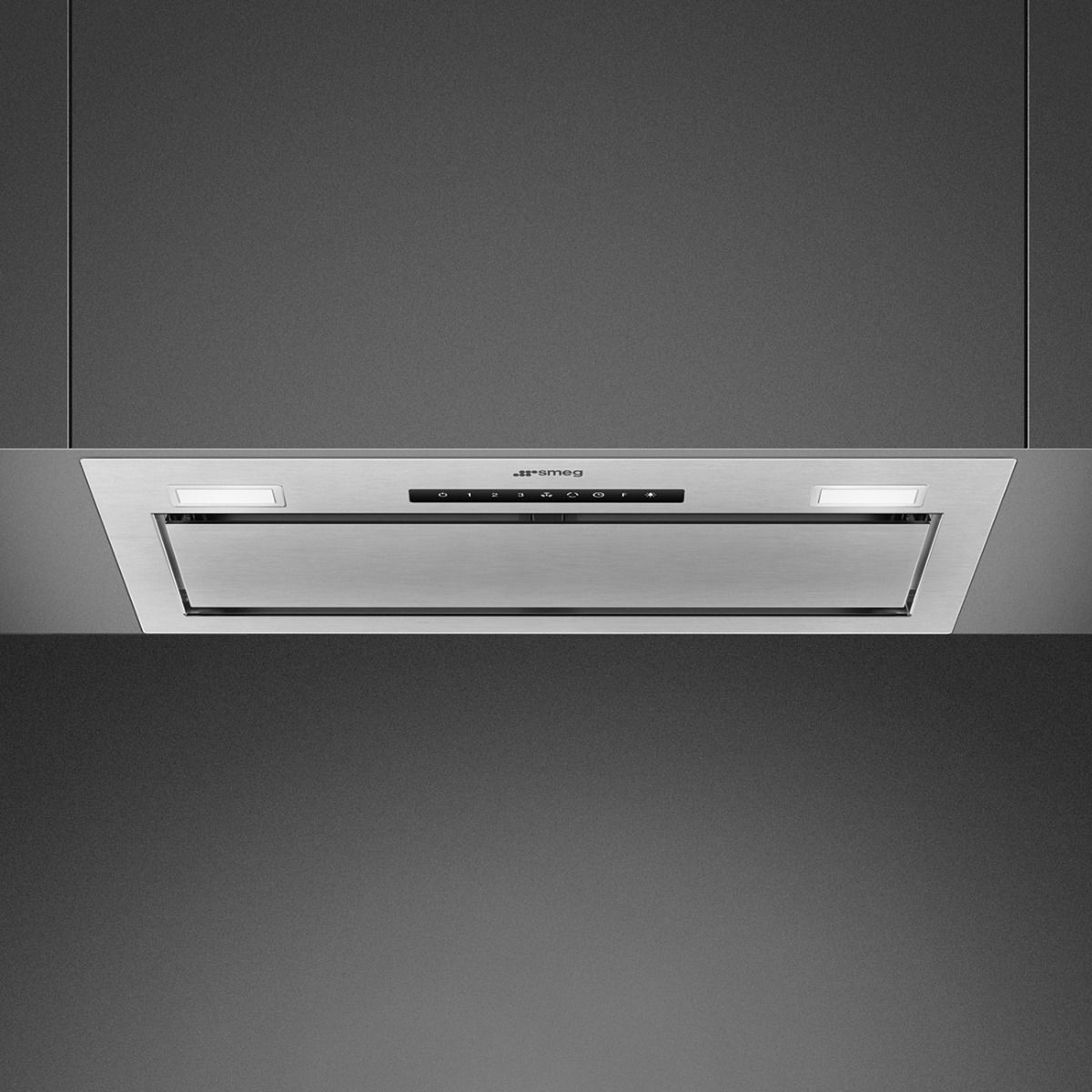

Smeg KSG6P4X Hood
Model No:
KSG6P4X
Dimensions:
335
mm (h) x
597
mm (w) x
300
mm (d)
Availability:
This product is available to order subject to availability from the manufacturer.
After placing your order, we will contact you with an estimated delivery date by
the end of the next working day (Mon-Fri) or call 01273 628618 (opt.1) for more details.
£589.00
- Colour: Stainless steel
- 67db max noise level
- Touch control
- Three power levels
- LED Lighting
- 60cm Wide
- Energy Rating
- 2 Year Warranty
Smeg KSG6P4X 54cm Canopy Hood Stainless Steel Auto Vent 2.0
Hood Universal KSG6P4X
Product family
Hood
Hood Type
Integrated hood
Aesthetics
Universal
Colour
Stainless steel
Hood width
60 cm
Energy efficiency class ( EEC)
B
PERIMETER EXTRACTION
This is an extremely efficient extraction process where vapors are drawn in through a restricted area of the hood quickly and then decrease once inside which reduces noise as it limits the vibrations of the filters.
DIMMER SWITCH
With the Dimmer function it is possible to increase or decrease the intensity of the hood light by holding down the light button.
TYPE
Perimeter extraction panels: very efficient and aid noise reduction.
Product family:Hood
Hood Type:Integrated hood
Hood width:60 cm
Extraction:Ducted out or re-circulation possible
Electronic control:Yes
Perimeter extraction:Yes
EAN code:8017709319366
AESTHETICS
Colour:Stainless steel
Finishing:Brushed
Aesthetics:Universal
Design:Fully integrated
Material:Stainless steel
Type of steel:Brushed
PROGRAMS / FUNCTIONS
Intensive/turbo setting: when extra fast extraction is required. 24h: When selected this function refreshes the air for c. 10 minutes every hour over a 24 hour period, at minimum speed and an imperceptible noise level. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically. ...
No. of speeds:3
Intensive speed:Yes
24h air filter function:Yes
Time-setting options:Automatic switch-off
Auto-vent 2.0:Yes
CONTROLS
Control setting:Touch control back-lighted White
Led colour:White
TECHNICAL FEATURES
... Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. ... Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights:2
Light type:LED
Light power:2,3 W
Dimmer mode:Yes
Light color temperature range:2700° - 4000° °K
Free outlet maximum capacity:730 m³/h
Motor power:230 W
No. of filters:2
Anti-grease filters:Aluminium
Filter replacement indicator:Yes
Minimum distance from GAS hob:650 mm
Minimum distance from ELECTRIC hob:650 mm
Vent outlet:150 mm
Non return valve:Yes
PERFORMANCE / ENERGY LABEL
B: Product energy rating, measured from A+++ to D / G depending on the product family.
Energy efficiency class ( EEC):B
Fluid Dynamic Efficiency class (FDEC):B
Grease Filtering Efficiency Class (GFEC):D
Lighting Efficiency Class (LEC):A
Annual Efficiency Consumption (AEChood):58 KWh/year
Fluid Dynamic Efficiency (FDE):27.9
Lighting Efficiency (LE):39.3 lux/W
Grease Filtering Efficiency (GFE):74.9 %
Air flow at minumum speed (Qmin):265 m³/h
Maximum extraction rate:484 m³/h
Intensive extraction rate:660 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin):49 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax):62 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost):67 dB(A)
Power Consumption in Off mode (Po):0.49 W
Time increase factor (F):1.0
Energy Efficiency Index per first cavity:58
Measured air flow rate at best efficiency point (Qbep):348 m³/h
Measured air pressure at best efficiency point (Qbep):433 Pa
Measured electric power input at best efficiency point (Wbep):150 W
Normal Power of the light system (Wl):5 W
Average illumination of the light on the cooking surface (Emiddle):181 lux
Sound power level at highest setting (Lwa):62 dB(A)
ELECTRICAL CONNECTION
Nominal power:235 W
Voltage:220-240 V
Frequency (Hz):50-60 Hz
Power supply cable length:1500 mm
SPEED 1
Extraction rate IEC 61591:265 m³/h
Noise level IEC 60704-2-13:49 dB(A)
Power:142 W
SPEED 2
Extraction rate IEC 61591:360 m³/h
Noise level IEC 60704-2-13:56 dB(A)
Power:160 W
SPEED 3
Extraction rate IEC 61591:484 m³/h
Noise level IEC 60704-2-13:61 dB(A)
Power:186 W
INTENSIVE SPEED
Extraction rate (IEC 61591):660 m³/h
Noise level IEC 60704-2-13:67 dB(A)
Power:216 W
LOGISTIC INFORMATION
Dimensions of the product (mm):335x597x300
Width:597 mm
Depth (mm):300 mm
Product Height (mm):335 mm
Net weight (kg):9.500 kg
Gross weight (kg):11.450 kg
Hood Universal KSG6P4X
Product family
Hood
Hood Type
Integrated hood
Aesthetics
Universal
Colour
Stainless steel
Hood width
60 cm
Energy efficiency class ( EEC)
B
PERIMETER EXTRACTION
This is an extremely efficient extraction process where vapors are drawn in through a restricted area of the hood quickly and then decrease once inside which reduces noise as it limits the vibrations of the filters.
DIMMER SWITCH
With the Dimmer function it is possible to increase or decrease the intensity of the hood light by holding down the light button.
TYPE
Perimeter extraction panels: very efficient and aid noise reduction.
Product family:Hood
Hood Type:Integrated hood
Hood width:60 cm
Extraction:Ducted out or re-circulation possible
Electronic control:Yes
Perimeter extraction:Yes
EAN code:8017709319366
AESTHETICS
Colour:Stainless steel
Finishing:Brushed
Aesthetics:Universal
Design:Fully integrated
Material:Stainless steel
Type of steel:Brushed
PROGRAMS / FUNCTIONS
Intensive/turbo setting: when extra fast extraction is required. 24h: When selected this function refreshes the air for c. 10 minutes every hour over a 24 hour period, at minimum speed and an imperceptible noise level. Switch off automatically: A special setting, to run after the end of cooking for a pre-set time and then switch off automatically. ...
No. of speeds:3
Intensive speed:Yes
24h air filter function:Yes
Time-setting options:Automatic switch-off
Auto-vent 2.0:Yes
CONTROLS
Control setting:Touch control back-lighted White
Led colour:White
TECHNICAL FEATURES
... Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. ... Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen. Warning light(s): to advise when filters need changing.
No. of lights:2
Light type:LED
Light power:2,3 W
Dimmer mode:Yes
Light color temperature range:2700° - 4000° °K
Free outlet maximum capacity:730 m³/h
Motor power:230 W
No. of filters:2
Anti-grease filters:Aluminium
Filter replacement indicator:Yes
Minimum distance from GAS hob:650 mm
Minimum distance from ELECTRIC hob:650 mm
Vent outlet:150 mm
Non return valve:Yes
PERFORMANCE / ENERGY LABEL
B: Product energy rating, measured from A+++ to D / G depending on the product family.
Energy efficiency class ( EEC):B
Fluid Dynamic Efficiency class (FDEC):B
Grease Filtering Efficiency Class (GFEC):D
Lighting Efficiency Class (LEC):A
Annual Efficiency Consumption (AEChood):58 KWh/year
Fluid Dynamic Efficiency (FDE):27.9
Lighting Efficiency (LE):39.3 lux/W
Grease Filtering Efficiency (GFE):74.9 %
Air flow at minumum speed (Qmin):265 m³/h
Maximum extraction rate:484 m³/h
Intensive extraction rate:660 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin):49 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax):62 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost):67 dB(A)
Power Consumption in Off mode (Po):0.49 W
Time increase factor (F):1.0
Energy Efficiency Index per first cavity:58
Measured air flow rate at best efficiency point (Qbep):348 m³/h
Measured air pressure at best efficiency point (Qbep):433 Pa
Measured electric power input at best efficiency point (Wbep):150 W
Normal Power of the light system (Wl):5 W
Average illumination of the light on the cooking surface (Emiddle):181 lux
Sound power level at highest setting (Lwa):62 dB(A)
ELECTRICAL CONNECTION
Nominal power:235 W
Voltage:220-240 V
Frequency (Hz):50-60 Hz
Power supply cable length:1500 mm
SPEED 1
Extraction rate IEC 61591:265 m³/h
Noise level IEC 60704-2-13:49 dB(A)
Power:142 W
SPEED 2
Extraction rate IEC 61591:360 m³/h
Noise level IEC 60704-2-13:56 dB(A)
Power:160 W
SPEED 3
Extraction rate IEC 61591:484 m³/h
Noise level IEC 60704-2-13:61 dB(A)
Power:186 W
INTENSIVE SPEED
Extraction rate (IEC 61591):660 m³/h
Noise level IEC 60704-2-13:67 dB(A)
Power:216 W
LOGISTIC INFORMATION
Dimensions of the product (mm):335x597x300
Width:597 mm
Depth (mm):300 mm
Product Height (mm):335 mm
Net weight (kg):9.500 kg
Gross weight (kg):11.450 kg
| Product Name : | Smeg KSG6P4X Hood |
|---|---|
| Colour : | Stainless steel |
| Noise Level : | 67db max noise level |
| Control Type : | Touch control |
| Power Levels : | Three power levels |
| Lighting : | LED Lighting |
| Manufacturer : | Smeg |
| Size : | 60cm Wide |
| Energy Rating : | [[B2]] Energy Rating |
| Warranty : | 2 Year Warranty |
