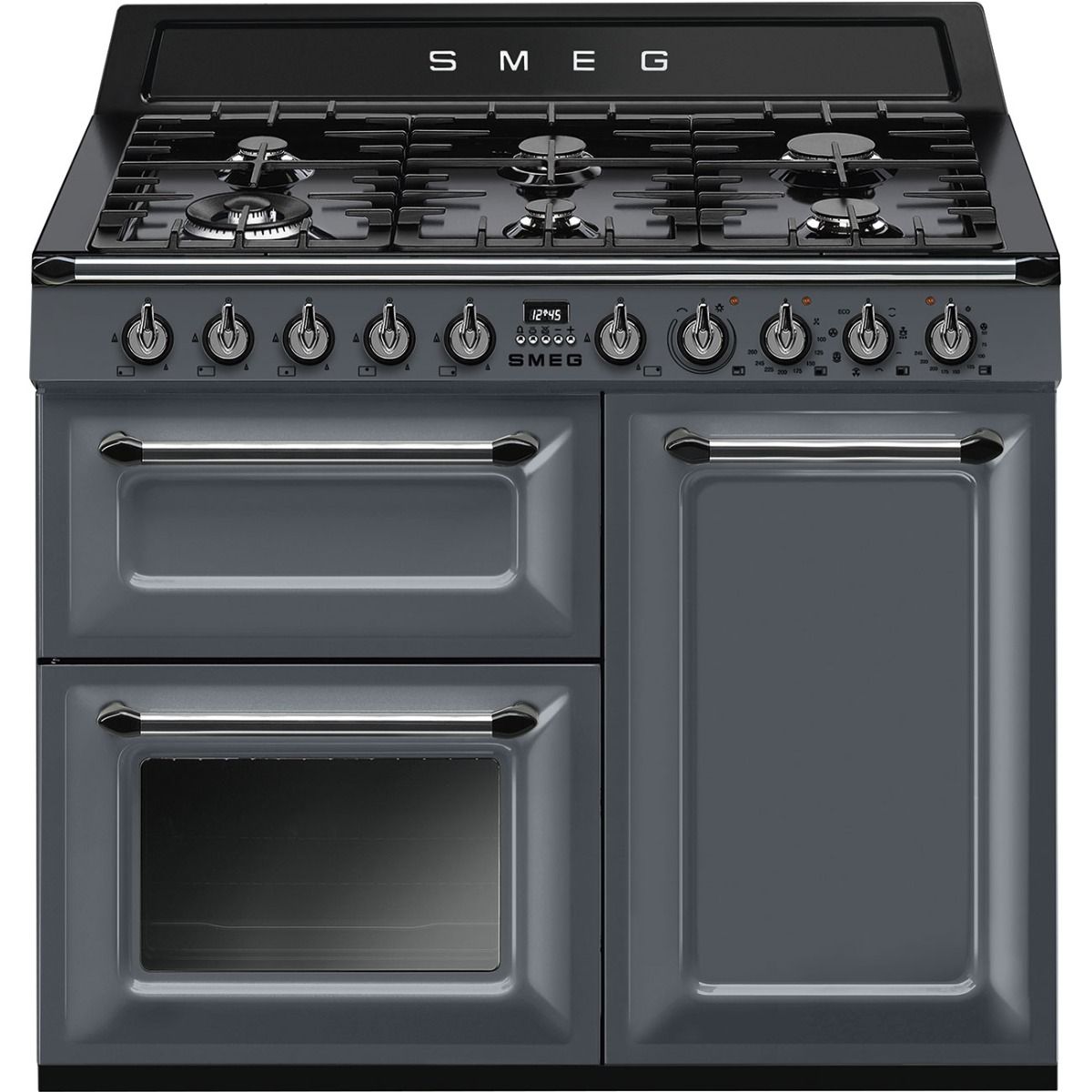

Smeg TR103GR Range Cooker

Smeg TR103GR 100Cm Victoria Three Cavity Dual Fuel Traditional Cooker - Grey
The main 61L multifunction oven offers 7 functions and is complimented by a tall 62L fan oven, providing the ideal solution for catering for large groups or simply if you need to use one oven when cooking for yourself. The third cavity is a top grill, with grill elements also in both ovens. A vapour clean system in the main oven makes for fuss free cleaning. The cavity is cleansed using steam generated by pouring a little water into the hollow in the base of the cavity and setting the cleaning function running. Grease and dirt can then simply be wiped away.
A gas hob with 6 burners sits atop the ovens. A powerful 4.2kW burner ensures rapid heat up and fast cooking. Heavy duty cast iron pan supports make for a traditional look.
An air cooling system, triple glazed doors and minute minder top off this model. Telescopic shelves, side opening doors and a dishwasher safe roof liner are handy extra features.

TYPE
Product Family:Cooker
Cooker size:100x60 cm
Hob type:Gas
Main oven type:Thermo-ventilated
Type of second oven:Thermo-ventilated
Cleaning system:Vapor Clean
EAN code:8017709294229

AESTHETICS
Colour:Slate Grey
Aesthetics:Victoria
Design:Victoria
Material:Enamelled
Door:With frame
Command panel finish:Enamelled metal
Hob colour:Stainless steel
Handle:Smeg Victoria
Controls colour:Stainless steel
Upstand:Yes
Display:electronic 5 buttons
Type of pan stands:Cast Iron
Handle Colour:Brushed stainless steel
Control knobs:Smeg Victoria
Glass type:Black
No. of controls:10
Plinth:Anthracite

PROGRAMME / FUNCTIONS
Traditional cooking functions
• Static
• Fan forced
• Turbo (circolaire + bottom + upper + fan)
• ECO
• Small grill
• Large grill
• Fan grill (large)
• Fan assisted base

Cleaning functions
• Vapor Clean

PROGRAMME / FUNCTIONS THIRD OVEN
No. of functions third oven:1

OPTIONS MAIN OVEN
Timer:Yes
End of cooking acoustic alarm:Yes
Minimum Temperature:50 °C
Maximum temperature:260 °C

OPTIONS AUXILIARY OVEN
Minimum Temperature:50 °C
Maximum temperature:245 °C

OPTIONS THIRD OVEN
Minimum Temperature:50 °C
Maximum temperature:260 °C

HOB TECHNICAL FEATURES
Total no. of cook zones:6
1st zone position:Front left
2nd zone position:Rear left
3rd zone position:Front centre
4th zone position:Rear centre
5th zone position:Front right
6th zone position:Rear right
1st zone type:Gas - 2UR (dual)
2nd zone type:Gas - AUX
3rd zone type:Gas - AUX
4th zone type:Gas - Semi Rapid
5th zone type:Gas - Semi Rapid
6th zone type:Gas - Rapid
1st zone power:4.20 kW
2nd zone power:1.00 kW
3rd zone power:1.00 kW
4th zone power:1.80 kW
5th zone power:1.80 kW
6th zone power:2.90 kW
Type of gas burners:Standard
Burner caps:Matt black enamelled
Automatic electronic ignition:Yes
Gas safety valves:Yes

MAIN OVEN TECHNICAL FEATURES
Net volume of the cavity:61 litres
Cavity material:Easy Clean enamel
No. of shelves:4
Type of shelves:Metal racks
No. of lights:1
Light type:Halogen
Light Power:40 W
Fan number:1
Cooking time setting:Start and Stop
Door opening:Side opening
Side opening door:Yes
Removable door:Yes
Full glass inner door:Yes
Total no. of door glasses:3
No.of thermo-reflective door glasses:1
Safety Thermostat:Yes
Cooling system:Tangential
Grill type:Electric
Tilting grill:Yes
Grill elememt:1700 W
Large grill - Power:2700 W
Lower heating element power:1200 W
Upper heating element - Power:1000 W
Circular heating element - Power:2000 W
Temperature control:Electro-mechanical

SECOND OVEN TECHNICAL FEATURES
Net volume of the second cavity:84 litres
Cavity material:Easy Clean enamel
No. of shelves:9
Type of shelves:Metal racks
No. of lights:1
Light type:Halogen
Light Power:40 W
Door opening:Side opening
Side opening door:Yes
Removable door:Yes
Full glass inner door:Yes
Removable inner door:Yes
No. total door glasses:2
No. thermo-reflective door glasses:1
Safety Thermostat:Yes
Cooling system:Tangential
Temperature control:Electro-mechanical

THIRD OVEN TECHNICAL FEATURES
Net volume, 3rd cavity:36 l
Gross volume, 3rd cavity:41 l
Cavity material:Easy Clean enamel
No. of shelves:2
Type of shelves:Metal racks
No. of lights:1
Light type:Halogen
Light Power:40 W
Door opening:Flap down
Removable door:Yes
Full glass inner door:Yes
Removable inner door:Yes
No. total door glasses:3
No. of thermo-reflective door glasses:1
Safety Thermostat:Yes Cooling system:Tangential
Grill type:Electric
Large grill - Power:2700 W
Temperature control:Electro-mechanical

ACCESSORIES INCLUDED FOR THIRD OVEN
Chrome shelf with back and side stop:1
40mm deep tray:1

PERFORMANCE / ENERGY LABEL
Energy efficiency class:A
GAS - Energy consumption in fan-forced convection, first cavity:2,77 MJ
Energy consumption forced air convection (kWh) first cavity:0,77 KWh
GAS - Energy consumption conventional mode, first cavity:3,42 MJ
Energy consumption conventional first cavity (kWh):0,95 KWh

PERFORMANCE /ENERGY LABEL - SECOND CAVITY
Energy efficiency class, second cavity:B
GAS - Energy consumption in forced air convection, second cavity:3,89 MJ
GAS - Energy consumption in forced air convection, second cavity:1,08 KWh

ELECTRICAL CONNECTION
Nominal power:8900 W
Current:39 A
Voltage:220-240 V
Frequency:50/60 Hz

GAS CONNECTION
Gas connection rating (W):12700 W
Gas Type:G20 Natural gas

LOGISTIC INFORMATION
Dimensions of the product HxWxD (mm):900x1000x600 mm
Width (mm):1000 mm
Product Height (mm):900 mm
Depth (mm):600 mm
Net weight (kg):118,2 kg
