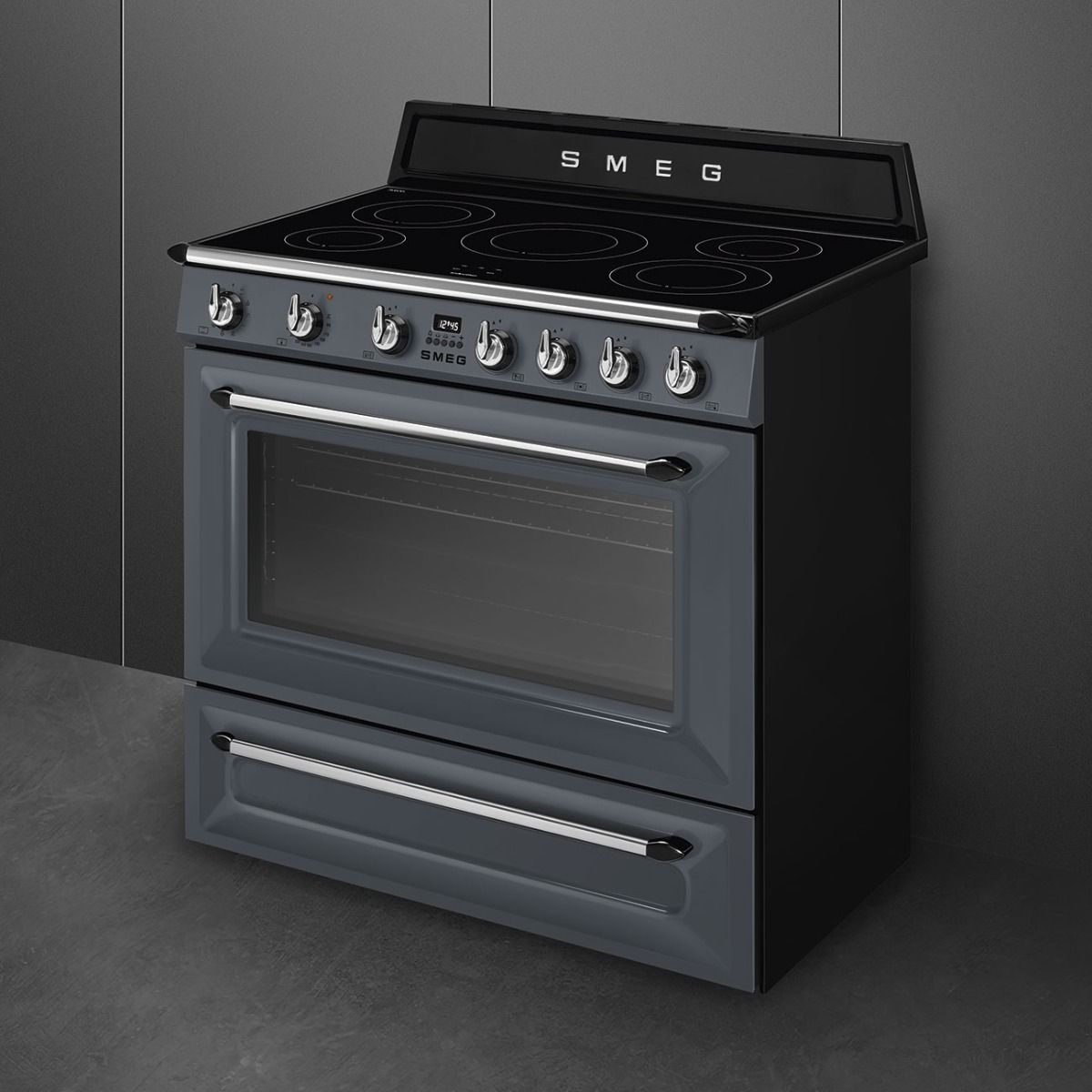

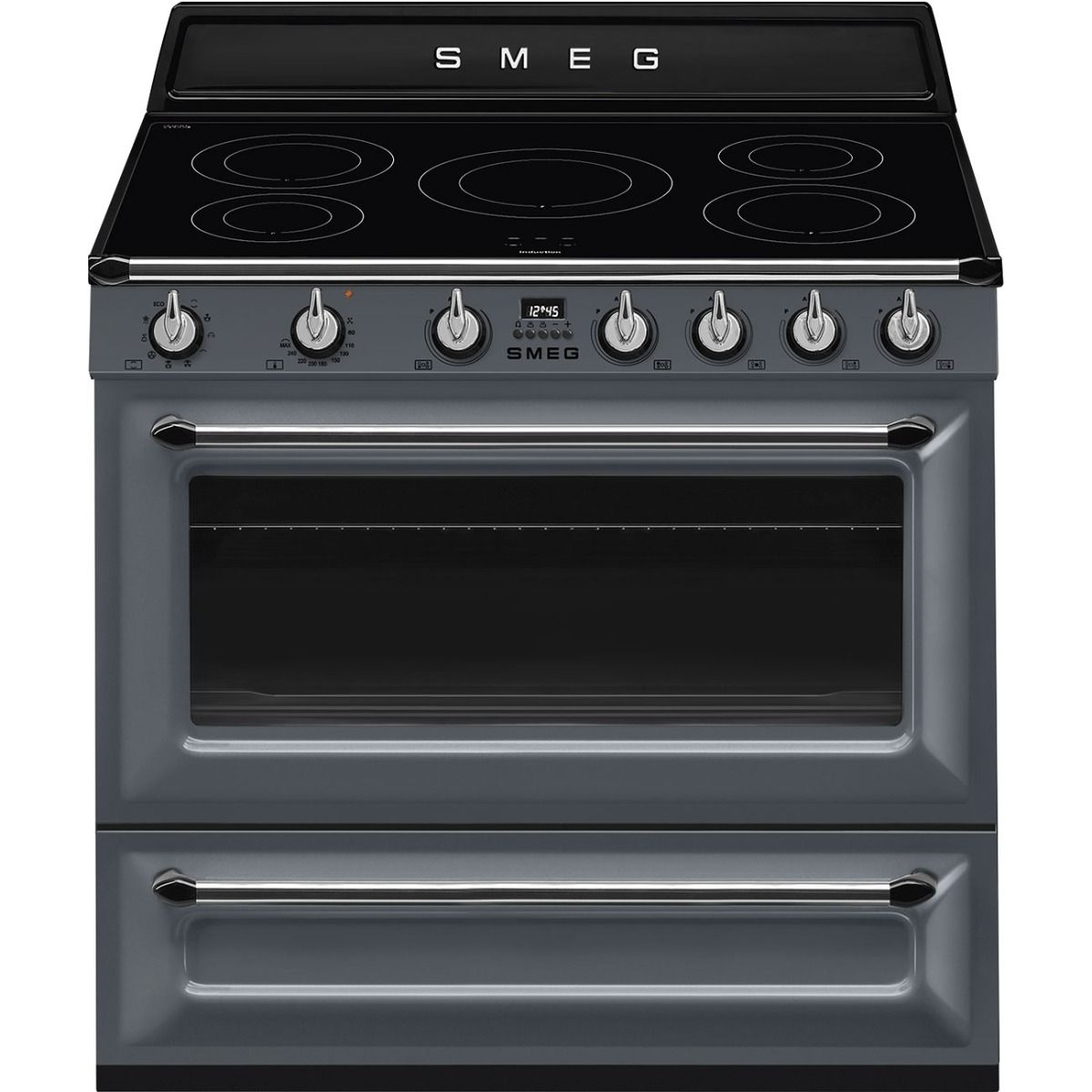

Smeg TR90IGR Range Cooker
Model No:
TR90IGR
Dimensions:
900
mm (h) x
900
mm (w) x
600
mm (d)
Availability:
This product is available to order subject to availability from the manufacturer.
After placing your order, we will contact you with an estimated delivery date by
the end of the next working day (Mon-Fri) or call 01273 628618 (opt.1) for more details.
£2,919.00
- Colour: Grey

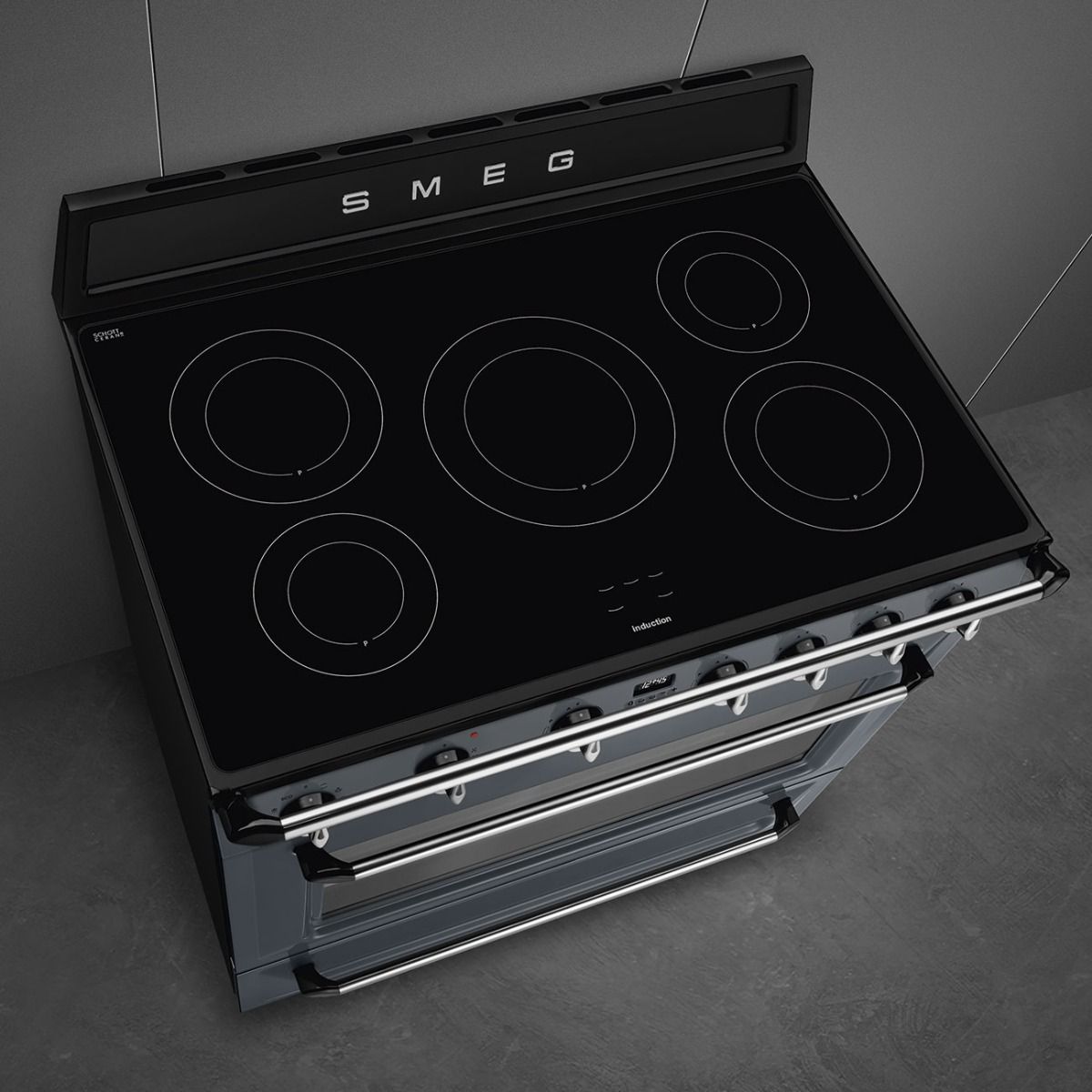

- Five Induction zones
- Multifunction Oven
- Closed door grilling facility

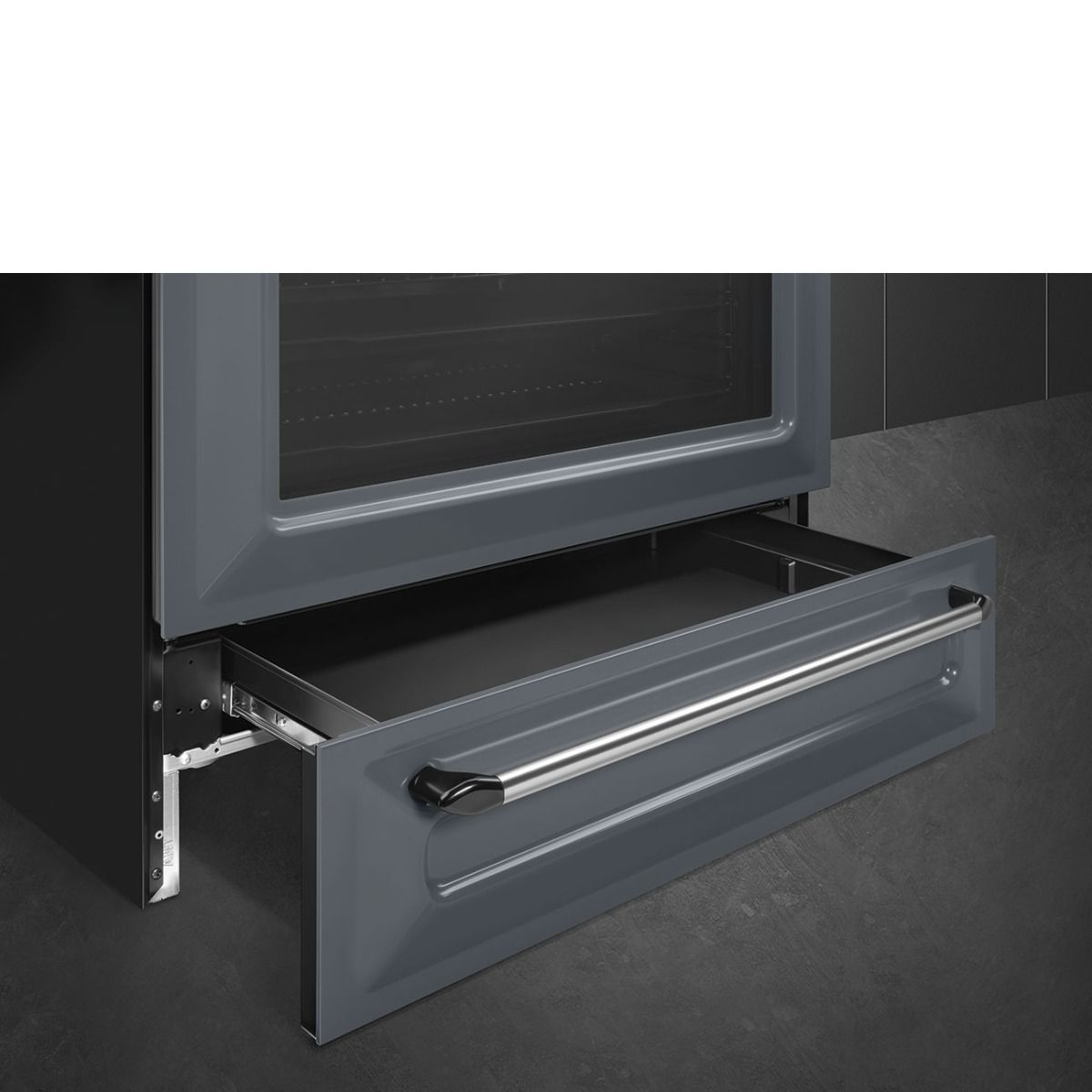

- Single Oven cavity with storage drawer beneath the oven
- Vapor Clean Function
- Fan Assisted Oven (main)
- 115lt net litres capacity (main)
- 90cm Range Cooker
- Energy Rating
- SMEG 2 YEAR WARRANTY
- Grill in main oven
- Easy clean enamel interior
Smeg TR90IGR 90Cm Victoria Electric Induction Range Cooker Grey
CookerVictoriaTR90IGR
Product Family
Cooker
Cooker size
90x60 cm
Aesthetics
Victoria
Colour
Slate Grey
Hob type
Induction
Main oven type
Thermo-ventilated
Energy efficiency class
A
COOKERS WITH INDUCTION HOB TOPS
Induction hobs are significantly faster in operation versus gas, giving you the possibility to speed up cooking times.
Heat is only generated when the pan comes into direct contact of the specific cooking zone, ensuring safety in the presence of children. This helps optimise power consumption, only using the energy needed to heat the pan itself.
Induction allows for precise temperature control when doing intricate cooking, or simmering for example.
CLOSED DOOR GRILLING
Closed door grilling allows you to grill with the door closed, keeping cooking smells inside the oven and out of the kitchen to ensure a safe cooking environment and reduced energy consumption.
TYPE
Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity. Induction: The work of these hobs is based on the principle of electromagnetic induction. The heat is generated directly in the bottom of the pan during its contact with the hob.
Product Family:
Cooker
Cooker size:
90x60 cm
Hob energy type:
Electric
N. of ovens:
1
Hob type:
Induction
Main oven type:
Thermo-ventilated
Cleaning system:
Vapor Clean
EAN code:
8017709306663
AESTHETICS
Colour:
Slate Grey
Aesthetics:
Victoria
Design:
Victoria
Material:
Enamelled
Door:
With frame
Command panel finish:
Enamelled metal
Hob colour:
Black enamel
Handle:
Smeg Victoria
Controls colour:
Stainless steel
Upstand:
Yes
Display:
electronic 5 buttons
Glass type:
Black
Handle Colour:
Polished chrome
Control knobs:
Smeg Victoria
No. of controls:
7
Feet:
none
Plinth:
Anthracite
Storage compartment:
Drawer
Sliding compartment:
Yes
PROGRAMS / FUNCTIONS
Traditional cooking functions
Upper and lower element only: a traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc.Static Fan with upper and lower elements: The elements combined with the fan aim to provide more uniform heat, a similar method to conventional cooking, so pre-heat is required. Most suitable for items requiring slow cooking methods.Fan assisted Circulaire: The combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food.Circulaire ECO: The combination of the grill, fan and lower element is particularly suitable for cooking small quantities of food.ECO Grill element: Using of grill gives excellent results when cooking meat of medium and small portions, especially when combined with a rotisserie (where possible). Also ideal for cooking sausages and bacon.Large grill Fan with grill element: The fan reduces the fierce heat from the grill, providing an excellent method of grilling various foods, chops, steaks, sausages etc. giving even browning and heat distribution, without drying out the food. The top two levels recommended for use, and the lower part of the oven can be used to keep items warm at the same time, an excellent facility when cooking a grilled breakfast. Half grill (centre portion only) is ideal for small quantities of food.Fan grill (large) Lower heating element only: This function is ideal for foods that require extra base temperature without browning, e.g. pastry dishes, pizza. Also suitable for slow cooking of stews and casseroles.Base Circogas: In gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning.Fan assisted base Rotisserie: The rotisserie (where installed) works in combination with the grill element to brown foods to perfection.Rotisserie
Cleaning functions
Catalytic Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.Vapor Clean
Other functions
Defrost by time: with this function the time of thawing of foods are determined automatically.Defrost by time
HOB OPTIONS
Child lock: some models are fitted with a device to lock the programme/cycle so it cannot be accidentally changed.
Control Lock / Child Safety:
Yes
OPTIONS MAIN OVEN
Timer:
Yes
End of cooking acoustic alarm:
Yes
Minimum Temperature:
50 °C
Maximum temperature:
260 °C
HOB TECHNICAL FEATURES
Overheat protection: The safety system that automatically turns off the hob in case of overheating of the control unit.
Total no. of cook zones:
5
1st zone position:
Front left
2nd zone position:
Rear left
3rd zone position:
Central
4th zone position:
Rear right
5th zone position:
Front right
1st zone type:
Induction - single
2nd zone type:
Induction - single
3rd zone type:
Induction - single
4th zone type:
Induction - single
5th zone type:
Induction - single
1st zone dimensions:
Ø 18.0 cm
2nd zone dimensions:
Ø 21.0 cm
3rd zone dimensions:
Ø 27.0 cm
4th zone dimensions:
Ø 18.0 cm
5th zone dimensions:
Ø 21.0 cm
1st zone power:
1.30 kW
2nd zone power:
2.30 kW
3rd zone power:
2.30 kW
4th zone power:
1.30 kW
5th zone power:
2.30 kW
1st zone booster power:
1.40 kW
2nd zone booster power:
3.00 kW
3rd zone booster power:
3.00 kW
4th zone booster power:
1.40 kW
5th zone booster power:
3.00 kW
Automatic switch off when overheat:
Yes
Automatic pan detection:
Yes
Minimum pan diameter indication:
Yes
Selected zone indicator:
Yes
MAIN OVEN TECHNICAL FEATURES
All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. Soft close: all models are equipped with advanced function of smooth closing of the door, which allows the device to close smoothly and quietly. The oven cavity has 5 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity:
115 litres
Gross volume, 1st cavity:
129 l
Cavity material:
Easy clean enamel
Shelf positions:
5
Type of shelves:
Metal racks
No. of lights:
2
Light type:
Halogen
Light power:
40 W
Fan number:
2
Cooking time setting:
Start and Stop
Door opening:
Flap down
Light when oven door is open:
Yes
Removable door:
Yes
Full glass inner door:
Yes
Removable inner door:
Yes
Total no. of door glasses:
3
No.of thermo-reflective door glasses:
2
Safety Thermostat:
Yes
Cooling system:
Tangential
Grill type:
Electric
Tilting grill:
Yes
Grill elememt:
1700 W
Large grill - Power:
2900 W
Lower heating element power:
1700 W
Upper heating element - Power:
1200 W
Circular heating element - Power:
2 x 1550 W
Soft Close system:
Yes
Temperature control:
Electro-mechanical
PERFORMANCE / ENERGY LABEL
A: Product drying performance, measured from A+++ to D / G depending on the product family
Energy efficiency class:
A
GAS - Energy consumption in fan-forced convection, first cavity:
3.53 MJ
Energy consumption forced air convection (kWh) first cavity:
0.98 KWh
GAS - Energy consumption conventional mode, first cavity:
4.36 MJ
Energy consumption conventional first cavity (kWh):
1.21 KWh
Energy consumption zone 2:
182.6 Wh/Kg
Energy consumption zone 3:
142 Wh/Kg
Energy consumption zone 4:
176.7 Wh/Kg
Energy consumption zone 5:
182.6 Wh/Kg
ELECTRICAL CONNECTION
Nominal power:
14300 W
Voltage:
220-240 V
Voltage 2 (V):
380-415 V
Frequency:
50/60 Hz
Power supply cable length:
150 cm
LOGISTIC INFORMATION
Width (mm):
900 mm
Product Height (mm):
900 mm
Depth (mm):
600 mm
Gross weight (kg):
102.800 kg
Net weight (kg):
91.900 kg
CookerVictoriaTR90IGR
Product Family
Cooker
Cooker size
90x60 cm
Aesthetics
Victoria
Colour
Slate Grey
Hob type
Induction
Main oven type
Thermo-ventilated
Energy efficiency class
A
COOKERS WITH INDUCTION HOB TOPS
Induction hobs are significantly faster in operation versus gas, giving you the possibility to speed up cooking times.
Heat is only generated when the pan comes into direct contact of the specific cooking zone, ensuring safety in the presence of children. This helps optimise power consumption, only using the energy needed to heat the pan itself.
Induction allows for precise temperature control when doing intricate cooking, or simmering for example.
CLOSED DOOR GRILLING
Closed door grilling allows you to grill with the door closed, keeping cooking smells inside the oven and out of the kitchen to ensure a safe cooking environment and reduced energy consumption.
TYPE
Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity. Induction: The work of these hobs is based on the principle of electromagnetic induction. The heat is generated directly in the bottom of the pan during its contact with the hob.
Product Family:
Cooker
Cooker size:
90x60 cm
Hob energy type:
Electric
N. of ovens:
1
Hob type:
Induction
Main oven type:
Thermo-ventilated
Cleaning system:
Vapor Clean
EAN code:
8017709306663
AESTHETICS
Colour:
Slate Grey
Aesthetics:
Victoria
Design:
Victoria
Material:
Enamelled
Door:
With frame
Command panel finish:
Enamelled metal
Hob colour:
Black enamel
Handle:
Smeg Victoria
Controls colour:
Stainless steel
Upstand:
Yes
Display:
electronic 5 buttons
Glass type:
Black
Handle Colour:
Polished chrome
Control knobs:
Smeg Victoria
No. of controls:
7
Feet:
none
Plinth:
Anthracite
Storage compartment:
Drawer
Sliding compartment:
Yes
PROGRAMS / FUNCTIONS
Traditional cooking functions
Upper and lower element only: a traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc.Static Fan with upper and lower elements: The elements combined with the fan aim to provide more uniform heat, a similar method to conventional cooking, so pre-heat is required. Most suitable for items requiring slow cooking methods.Fan assisted Circulaire: The combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food.Circulaire ECO: The combination of the grill, fan and lower element is particularly suitable for cooking small quantities of food.ECO Grill element: Using of grill gives excellent results when cooking meat of medium and small portions, especially when combined with a rotisserie (where possible). Also ideal for cooking sausages and bacon.Large grill Fan with grill element: The fan reduces the fierce heat from the grill, providing an excellent method of grilling various foods, chops, steaks, sausages etc. giving even browning and heat distribution, without drying out the food. The top two levels recommended for use, and the lower part of the oven can be used to keep items warm at the same time, an excellent facility when cooking a grilled breakfast. Half grill (centre portion only) is ideal for small quantities of food.Fan grill (large) Lower heating element only: This function is ideal for foods that require extra base temperature without browning, e.g. pastry dishes, pizza. Also suitable for slow cooking of stews and casseroles.Base Circogas: In gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning.Fan assisted base Rotisserie: The rotisserie (where installed) works in combination with the grill element to brown foods to perfection.Rotisserie
Cleaning functions
Catalytic Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity.Vapor Clean
Other functions
Defrost by time: with this function the time of thawing of foods are determined automatically.Defrost by time
HOB OPTIONS
Child lock: some models are fitted with a device to lock the programme/cycle so it cannot be accidentally changed.
Control Lock / Child Safety:
Yes
OPTIONS MAIN OVEN
Timer:
Yes
End of cooking acoustic alarm:
Yes
Minimum Temperature:
50 °C
Maximum temperature:
260 °C
HOB TECHNICAL FEATURES
Overheat protection: The safety system that automatically turns off the hob in case of overheating of the control unit.
Total no. of cook zones:
5
1st zone position:
Front left
2nd zone position:
Rear left
3rd zone position:
Central
4th zone position:
Rear right
5th zone position:
Front right
1st zone type:
Induction - single
2nd zone type:
Induction - single
3rd zone type:
Induction - single
4th zone type:
Induction - single
5th zone type:
Induction - single
1st zone dimensions:
Ø 18.0 cm
2nd zone dimensions:
Ø 21.0 cm
3rd zone dimensions:
Ø 27.0 cm
4th zone dimensions:
Ø 18.0 cm
5th zone dimensions:
Ø 21.0 cm
1st zone power:
1.30 kW
2nd zone power:
2.30 kW
3rd zone power:
2.30 kW
4th zone power:
1.30 kW
5th zone power:
2.30 kW
1st zone booster power:
1.40 kW
2nd zone booster power:
3.00 kW
3rd zone booster power:
3.00 kW
4th zone booster power:
1.40 kW
5th zone booster power:
3.00 kW
Automatic switch off when overheat:
Yes
Automatic pan detection:
Yes
Minimum pan diameter indication:
Yes
Selected zone indicator:
Yes
MAIN OVEN TECHNICAL FEATURES
All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. Soft close: all models are equipped with advanced function of smooth closing of the door, which allows the device to close smoothly and quietly. The oven cavity has 5 different cooking levels. The inner door glass: can be removed with a few quick movements for cleaning. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity:
115 litres
Gross volume, 1st cavity:
129 l
Cavity material:
Easy clean enamel
Shelf positions:
5
Type of shelves:
Metal racks
No. of lights:
2
Light type:
Halogen
Light power:
40 W
Fan number:
2
Cooking time setting:
Start and Stop
Door opening:
Flap down
Light when oven door is open:
Yes
Removable door:
Yes
Full glass inner door:
Yes
Removable inner door:
Yes
Total no. of door glasses:
3
No.of thermo-reflective door glasses:
2
Safety Thermostat:
Yes
Cooling system:
Tangential
Grill type:
Electric
Tilting grill:
Yes
Grill elememt:
1700 W
Large grill - Power:
2900 W
Lower heating element power:
1700 W
Upper heating element - Power:
1200 W
Circular heating element - Power:
2 x 1550 W
Soft Close system:
Yes
Temperature control:
Electro-mechanical
PERFORMANCE / ENERGY LABEL
A: Product drying performance, measured from A+++ to D / G depending on the product family
Energy efficiency class:
A
GAS - Energy consumption in fan-forced convection, first cavity:
3.53 MJ
Energy consumption forced air convection (kWh) first cavity:
0.98 KWh
GAS - Energy consumption conventional mode, first cavity:
4.36 MJ
Energy consumption conventional first cavity (kWh):
1.21 KWh
Energy consumption zone 2:
182.6 Wh/Kg
Energy consumption zone 3:
142 Wh/Kg
Energy consumption zone 4:
176.7 Wh/Kg
Energy consumption zone 5:
182.6 Wh/Kg
ELECTRICAL CONNECTION
Nominal power:
14300 W
Voltage:
220-240 V
Voltage 2 (V):
380-415 V
Frequency:
50/60 Hz
Power supply cable length:
150 cm
LOGISTIC INFORMATION
Width (mm):
900 mm
Product Height (mm):
900 mm
Depth (mm):
600 mm
Gross weight (kg):
102.800 kg
Net weight (kg):
91.900 kg
| Product Name : | Smeg TR90IGR Range Cooker |
|---|---|
| Colour : | Grey |
| Range Hob type : | Five Induction zones |
| Range Oven Type : | Multifunction Oven |
| Range Grill : | Closed door grilling facility |
| Range No of Ovens : | Single Oven cavity with storage drawer beneath the oven |
| Oven Cleaning : | Vapor Clean Function |
| Electrical Connection : | Must be hard wired |
| Type of main Oven : | Fan Assisted Oven |
| Capacity (Litres) Main Oven : | 115lt net |
| Manufacturer : | Smeg |
| Size : | 90cm Range Cooker |
| Energy Rating : | [[A2]] Energy Rating |
| Warranty : | SMEG 2 YEAR WARRANTY |
| Grill : | Grill in main oven |
| Type of Oven Interior : | Easy clean enamel interior |
Delivery is free for Sussex deliveries inc postcodes BN, RH and lower GU (6,8 & 28) plus East PO (18-22) of sales totalling £150 or more. We can usually deliver to customers outside this area for a competitive fee in the region of £50 to £90 subject to appliance type. Please call 01273 628618 option 1 during working hours for a delivery quotation.
