Miele DA9091W Hood
Miele DA9091W Hood Miele DA9091W Hood Miele DA9091W Hood Miele DA9091W Hood

Miele DA9091W Hood

Model No:
DA9091W
Dimensions:
400
mm (h)  x
880
mm (w)  x
260
mm (d)
Availability:
In stock (1)*
*Stock quantity shown may include display models which sometimes
cannot be sold due to their installation in our showrooms. Before
ordering, please call 01273 628618 (opt.1) to check availability.
£1,149.00
  • BLACK 90cm wide CHIMNEY HOOD
  • Colour: Black
  • 55db max noise level
  • Touch control
  • Three power levels
  • LED Lighting
  • 90cm Wide
  • B
    Energy Rating
  • 2 Year Warranty

Miele is a German manufacturer of high quality domestic appliances and commercial equipment. Founded in 1899 by Carl Miele and Reinhard Zinkann, the motto is 'Immer Besser' or 'Forever Better' and this philosophy is still reflected in the legendary quality and longevity of the products.

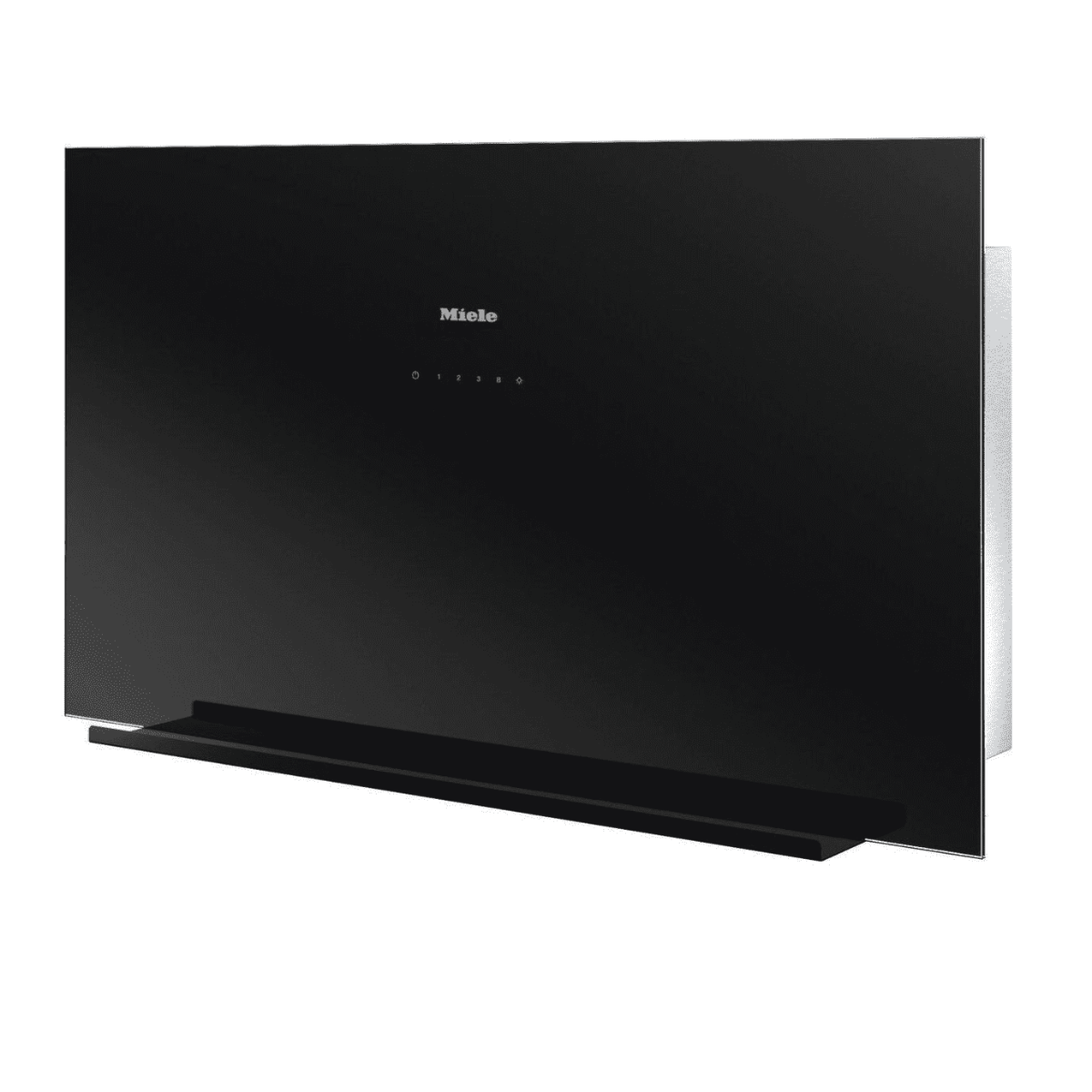

Miele DA9091W Chimney Cooker Hood - Obsidian Black 11683850
Wall mounted cooker hood With vertical glass front and extremely flat design for more headroom.
Linear design with 880 mm width and minimum depth of 260 mm
Modern touch controls on glass front
LED strip for uniform lighting
Wide rack – can be used as a shelf for herbs, for example
Efficient filtration- 10-ply stainless-steel grease filter

MIELE DA9091 W Wall mounted cooker hood With vertical glass front

Easy to use and effective against grease

Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.

Performance and convenience as standard

Efficient and very quiet. The motor, chimney and cooker hood canopy are equipped with special insulation for effective sound-proofing. You can have a normal conversation even with high air throughput.

Convenience and safety in detail

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.

A completely odour-free kitchen

To remove odours with a Miele recirculation cooker hood, you can use an active charcoal filter. This disposable filter has to be replaced on a regular basis.

Special safety for hoods with a glass canopy

Miele cooker hoods with a material combination of glass and stainless steel feature single-pane safety glass. If broken, this special glass crumbles into lots of small pieces without sharp edges. As you would expect: Miele ensures maximum safety should the unexpected happen.

Timeless purism

Miele offers cooker hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele cooker hoods have characteristic accents without being intrusive. Clean lines, well thought-out functions and timeless design.

Brand Miele
MPN DA 9091 W

Construction type

Wall mounted cooker hood

Operating modes

Type of air guide Convertible
Active charcoal filter (order separately) DKF 29 charcoal filter

Design

Colour Obsidian black
Variable height available as customisation on request
Variable width available as customisation on request

User convenience

Electronic controls
Touch-on-glass controls
Power levels (number without Booster level) 3
Booster level
Programmable Booster level switch-off
Silence package

Efficiency and sustainability

Energy efficiency class (A+++ to D) B
Annual energy consumption in kWh/year 67.70
Fluid dynamic efficiency class B
Lighting efficiency class A
Grease filtering efficiency class B

Cleaning convenience

Easy-to-clean canopy interior – CleanCover

Filter system

Number of dishwasher safe stainless-steel grease filters (10-ply) 2

Lighting

LED
Number x W 1 x 3,2 W
Light intensity in Lx 300 lx
Colour temperature in K 3500 Kelvin

Blower

Dual-action blower
AC motor

Extraction

Air throughput in Level 1 (m³/h) according to EN 61591205
Air throughput in Level 2 (m³/h) according to EN 61591310
Air throughput in Level 3 (m³/h) according to EN 61591415
Air throughput in Booster level (m³/h) according to EN 61591670
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-339.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-345.00
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-350.00
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-362.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1325.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1331.00
Sound pressure in setting 3 (dB(A) re 20 µPa)36.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1348.00

Recirculation

Air throughput in Level 1 (m³/h) according to EN 61591190
Air throughput in Level 2 (m³/h) according to EN 61591290
Air throughput in Level 3 (m³/h) according to EN 61591385
Air throughput in Booster level (m³/h) according to EN 61591605
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-344.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-351.00
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-358.00
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-369.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-1330.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-1337.00
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-1344.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-1355.00

Safety

Safety shut-off
Single-ply safety glass (ESG)

Technical data

Overall height for vented and external in in. (mm) 500
Overall height for extraction mode and external mode cooker hoods in mm 500
Overall height for recirculation in in. (mm) 500
Overall height for recirculation mode cooker hoods in mm 500
Canopy width in in. (mm) 880
Canopy height in in. (mm) 500
Depth of hood canopy in in. (mm) 260
Minimum height above electric hobs in mm 450
Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Net weight in kg 21.50
Length of supply lead in m 1.50
Standard plug fitted
Total rated load in kW 0.20
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50

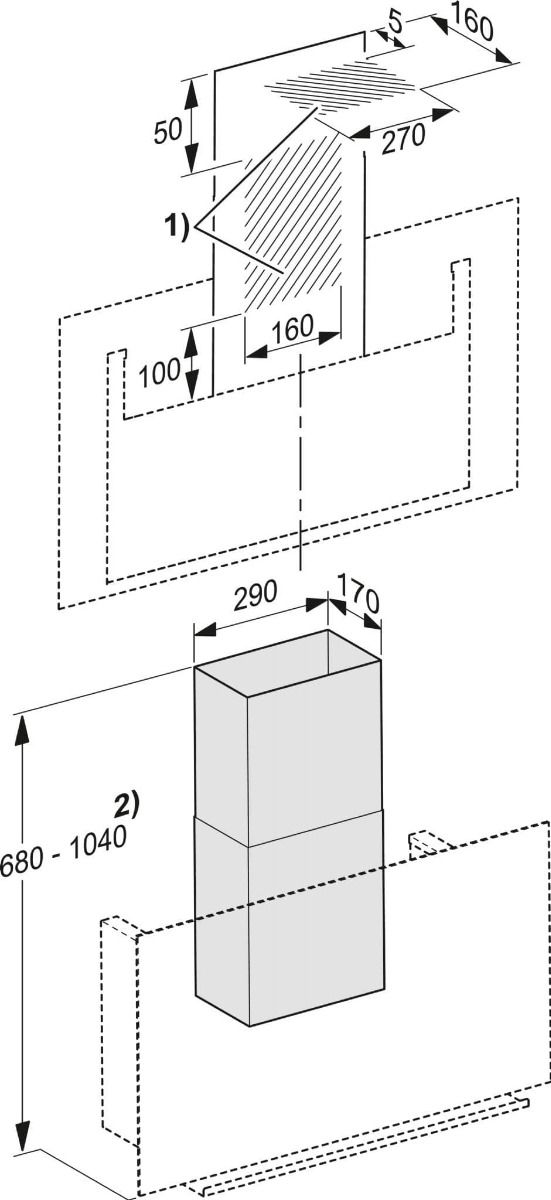

Installation notes

Extraction ducting connection at top
Extraction ducting connection at rear
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
